8-channel acquisition unit - CEN

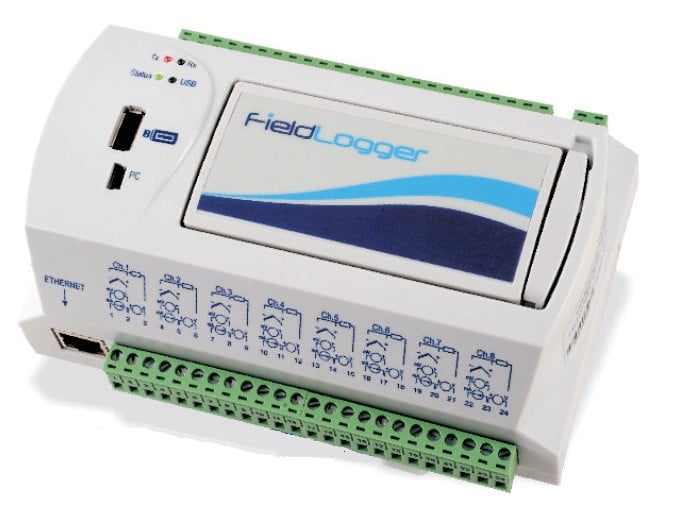

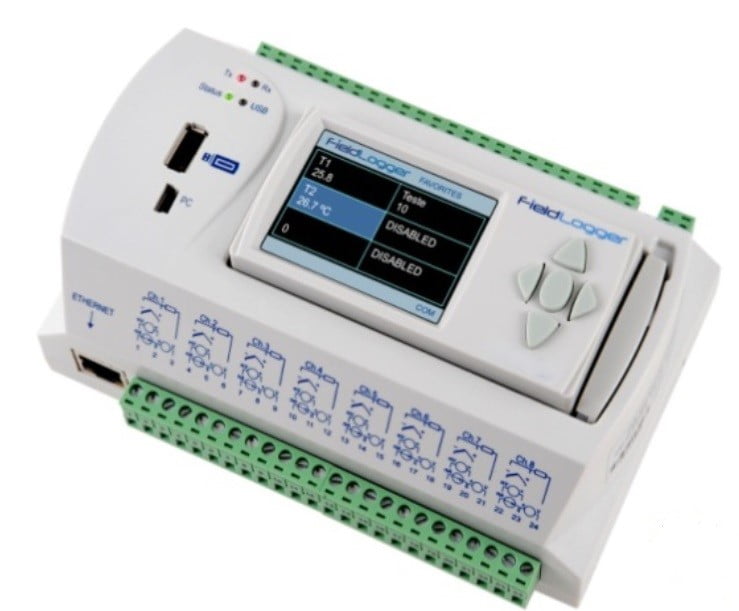

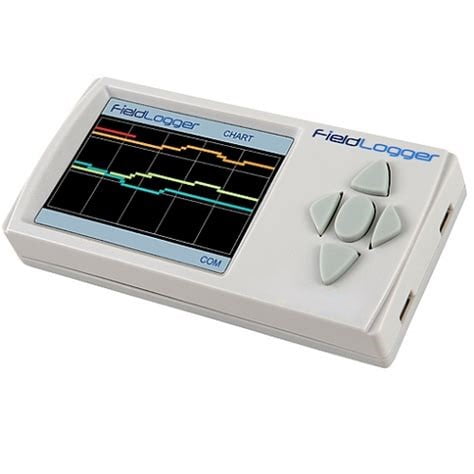

The FieldLogger is an analog (mV, TC, volts...) or digital signal acquisition unit. Easy to transport, configure and use, it's a powerful and comprehensive unit. It features high resolution and very fast acquisition times. The 8 analog inputs can be configured as thermocouples, Pt100, Pt1000, voltage and current. In addition, the control unit has 2 relay outputs and 8 digital ports, individually configurable as inputs or outputs. The FieldLogger has a USB interface for connection to a PC, and another USB port for plugging in an external storage card. A color graphic display can be mounted either directly on the device (HMI option) or remotely, for configuration and visualization.
8 universal analog inputs thermocouples, V, mV, mA, Pt100 and Pt1000
Acquisition and display speed 1000/second
A/D conversion resolution 24bit
Digital inputs/outputs 8 Channels individually configurable as input or output
Relay outputs (NO, NC and common) 2
Configurable alarms 32
Module power supply 100 to 240Vac optional in 2011: 19 to 30Vdc
Power supply 24Vdc For 4-20mA transmitter
Communication RS485
Recording 100 lanes Free software and DLLs
Power 8 VA (max)
Operating temperature 0 to 50°C
Protection IP20

8-channel acquisition unit - CEN

Reference : FP 2636 - CEN
Availability : 3 - 4 weeks
Downloads :
• FR - Technical data Download file
