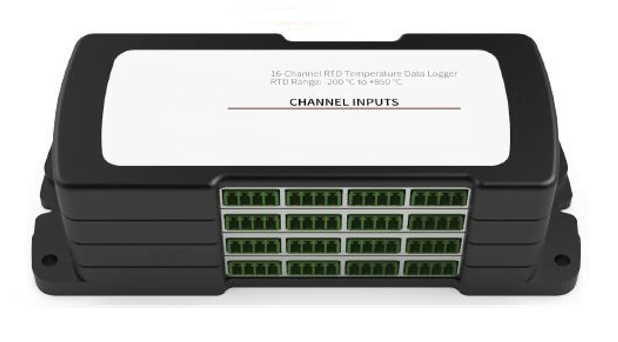

RTD Pt100 temperature data logger with 4, 8, 12 and 16 channels - EN DAT

RTD-based temperature data logger with 4, 8, 12 and 16 channels and readout rates up to 4 Hz. It benefits from increased memory for more readings and increased download speed. To maximize memory capacity, users can enable or disable channels. For easy identification, each channel can be named with a ten-digit title.

**Temperature Measuring range :	18.5 Ω to 390.5 Ω-200 ºC to +850 ºC
Resolution:	0.0001Ω 0.01 °C
*** Calibrated accuracy :	±0.015 Ω @ 25 ºC ±0.04 °C
Specified accuracy range :	18.5 Ω to 175.9 Ω -200 °C to +200 °C
Input connection :	Removable screw terminal ; 2, 3 or 4-wire interface
Effect of temperature on duration :	2 ppm / ° C typical

RTD Pt100 temperature data logger with 4, 8, 12 and 16 channels - EN DAT

Reference : EN DAT According to I FP 2589

Availability : tracked stock

Downloads :
