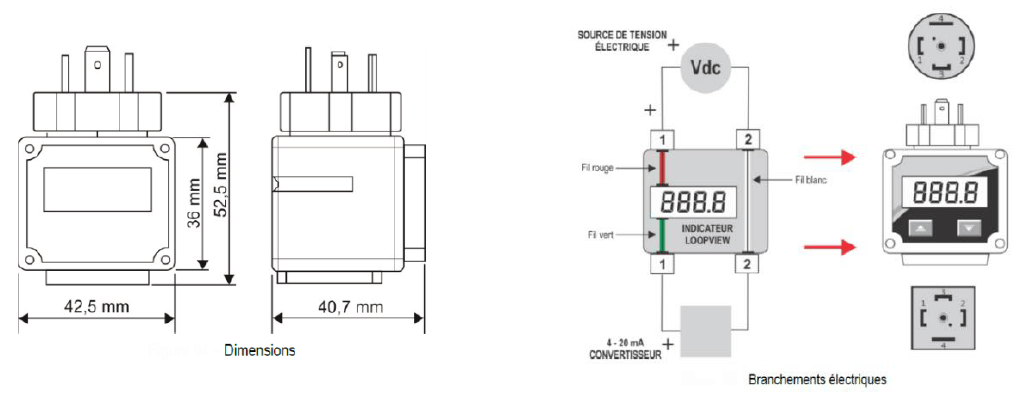

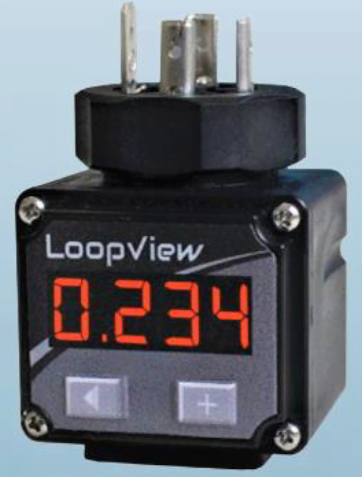

The indicator features standard EN 175301-803 (formerly DIN 43650) male and female connectors, located at the top and bottom respectively.
ENVIRONMENTAL CONDITIONS :
Operating temperature : -40 to 85°C
POWER SUPPLY: 4 to 20 mA current loop
MAXIMUM LOOP CURRENT: 60 mA
INDICATION RANGE: -1999 to 9999 / 9999 to -1999
DISPLAY RESOLUTION: 11998 levels ( -1999 to 9999)
ACCURACY OF INDICATED VALUE: 0.1 % of span ± 1 digit (@ 25°C)
SAMPLING RATE: 100 ms
THERMAL COEFFICIENT: 0.005 % / °C of span
VOLTAGE DROP ACROSS INDICATOR :
< 10 mA: < 5.4 V
10 to 12 mA: 12 mA: < 2.8 V
CASING: ABS (polyurethane gasket)
PROTECTION: IP65, NEMA4X
CERTIFICATION: CEDo you have a project in the design phase? Are you looking for measurement solutions tailored to your technical and regulatory requirements? Contact us to discuss your requirements or get a quote.
