Portable strain gage bridge display - PNFO PSDS

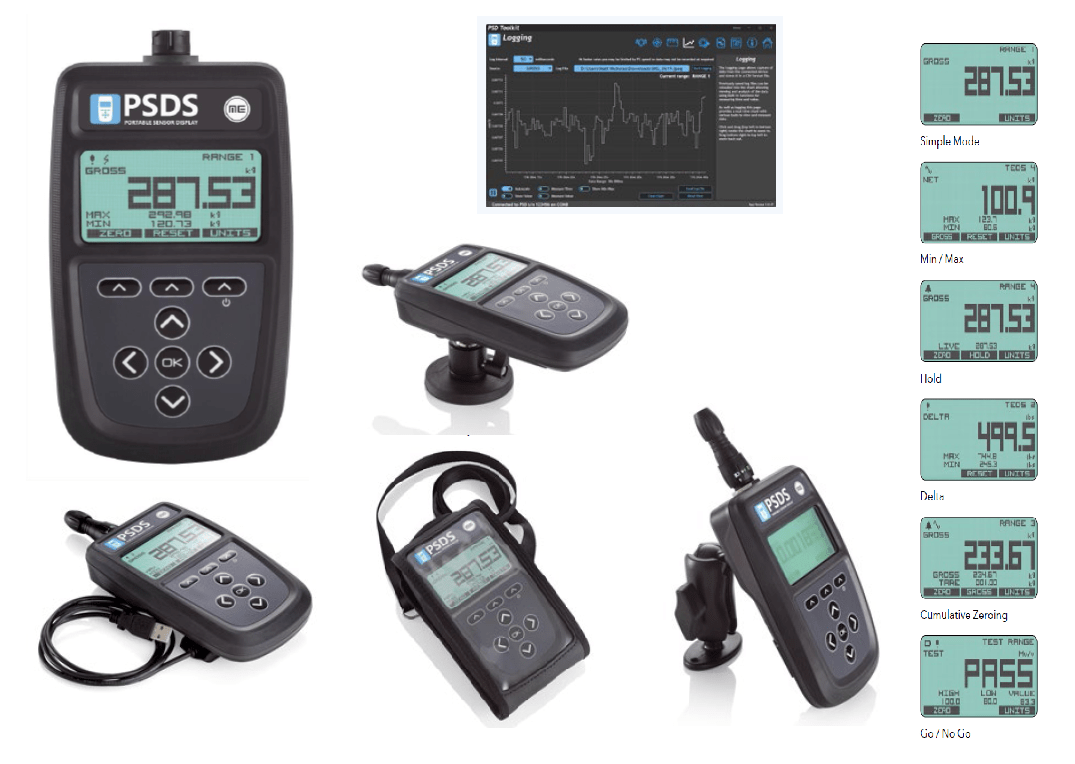

The PSDS makes it easy to display strain gage-based measurements such as load cells / tension / compression and pressure transducers with a sensitivity of up to +/- 480 mV/V. Up to six calibration ranges are available, allowing different load modes (tension and compression) or different load cells. Each calibration range remembers parameters that contribute to the user experience, such as selected units and tare values. Up to six display modes are available, which determine what is visible on the LCD screen and what actions are available from the set of three programmable keys. Full configuration is available with the software. Some simple configurations, such as two-point calibration, are available directly from the keypad. This display can be used as a portable device or, with optional mounting accessories, can be attached to equipment or a wall.... The PSD is powered by two internal non-rechargeable AA alkaline batteries.

Features Value
Sensor input Gauge sensor (Wheatstone bridge)
Bridge impedance From 85 to 10000 ohms
Wiring 6-wire or 4-wire
Signal +/-7.5mV/V to +/-480mV/V +/-0.5mV/V with reduced resolution
Unit of measure Numerous units available with automatic scaling
Configuration/calibration 6 tables available
Functions Min Max Hold Cumulative tare Deviation Alarm OK/NOK
Screen 128x64 pixels
Power supply 2 AA or USB batteries
Autonomy 220h at 1 Hz or 60 h at 1200 Hz
Software Real-time curve display and parameterization
Protection class IP 64
Dimensions 170 x 94 x 42 mm
Weight 365 grams


Portable strain gage bridge display - PNFO PSDS

Reference : PNFO PSDS according to FP4035
Availability : large stock
Downloads :
• FR - Technical data Download file
