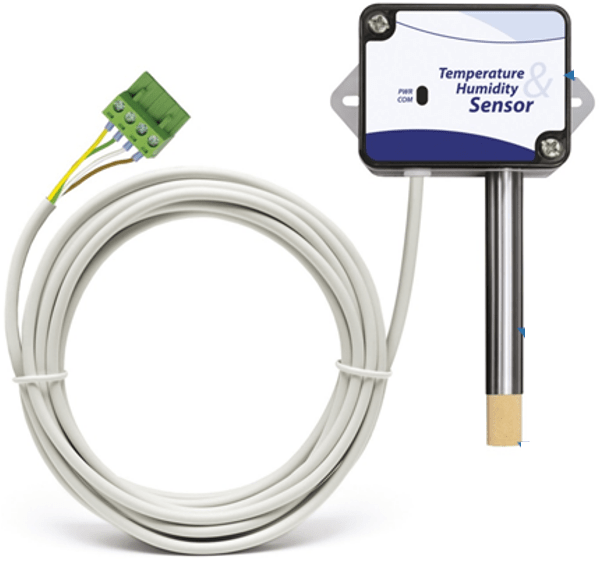

| Temperature measurement range | -30°C ~ +70°C |
| Operating temperature | -30°C ~ +70°C |
| Temperature accuracy | ±0.3°C typical, see graph 1 page 2 |
| Humidity measurement range | 0% ~ 100% |
| Humidity accuracy | ±2% RH typical, see graph 2 on page 2 |
| Communication interface | RS485 |
| Communication protocol | ELEN (communication protocol description available on request) |
| Power source | 9 ~ 24 VDC, 12VDC when powered by display |
| Protection class | IP 54 transmitter housing, IP 40 sensor, suitable for indoor use only |
| Dimensions | 88 mm x 139 mm x 43 mm (see dimensional drawing on page 2) |
| Cable length | 5 m as standard, (other cable lengths 0 - 150 m available on request) |
Do you have a project in the design phase? Are you looking for measurement solutions tailored to your technical and regulatory requirements? Contact us to discuss your requirements or get a quote.
Our quality system is ISO 9001 and EN 9100 certified, guaranteeing controlled processes to meet industry standards.
In compliance with the main standards: DO 160, MIL-STD, AMS 2750, we guarantee optimum reliability in the most extreme environments.
Each component is identified by batch and serial number. We keep all material certificates and conformity documents for full traceability.
