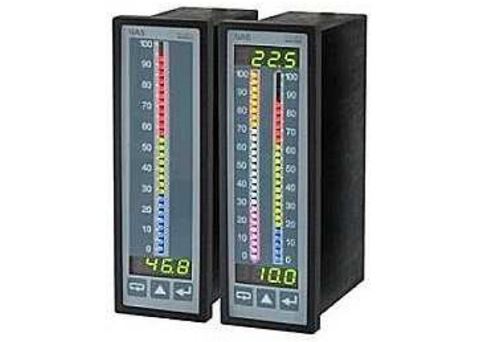

Bargraph indicator with digital display - INBU

This bargraph display allows a physical quantity to be displayed directly by means of a graphic indicator, so that the value can be seen more quickly than with a digital display. Its programmable input and multicolor display cover a wide range of applications. An analog or digital output, as well as logic and alarm outputs, are available as options.

	1-channel version	2-channel version
Display	4-digit 7 mm LCD (red, green or blue)
Bar graph height	82 mm
Inputs	Thermocouples, RTD, mV for SHUNT, voltage up to 600 V, mA and A up to 5A
Option	mA or V analog output, RS 485 modbus ASCII or RTU, 4 alarm relays or 8 logic outputs with timer function
Recording function	750 measurements
Number of segments 3-color version	55	48
Number of segments 7-color version	29	27
Format	48 x 144 mm

Bargraph indicator with digital display - INBU

Reference : INBU following I FP 2513

Availability : 2 weeks

Downloads :
