Universal Bargraph Display - INB
The INB series indicator display is a simple bar graph, designed for maximum efficiency and user comfort while retaining its low cost. With the option of configuring its universal input into 5 different input types via the menu. The instrument is based on an 8-bit microcontroller with A/D converter, guaranteeing accuracy, stability and ease of use.

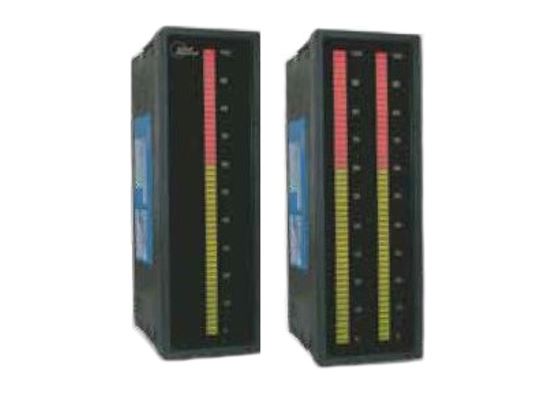

1-channel version 2-channel version
Display 50 Segments Bar color: red/green/orange 2x 50 Segments Bar color: red/green/orange
Bargraph height   48 mm
Number of inputs 1 2
    Power supply Range : 10...30 V AC/DC, ±10 %, PF ≥ 0.4, ISTP< 45 A/1 ms, isolated 80...250 V AC/DC, ±10 %, PF ≥ 0.4, ISTP< 45 A/1 ms, isolated
Power consumption: < 3.5 W/3.9 VA Power consumption: < 5.0 W/5.4 VA
Connection: Plug-in screw connector, cross-section < 1.5/2.5 mm2
Operating temperature: -20°...60°C
Storage temperature: -20°...85°C
Waterproofing: IP40 (front panel only)

Universal Bargraph Display - INB

Reference : INB following I FP 2513B
Availability : 2 weeks
Downloads :
• FR - Technical data Download file
