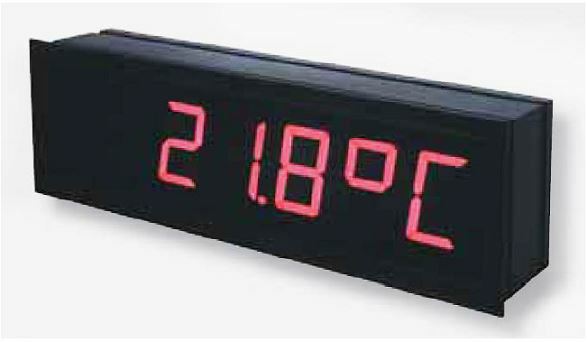

Large universal display - INGU
This device is a large programmable display for indoor and outdoor use with IP64 sealing. It is a multi-function indicator with a configuration of 8 different input options, easily configurable in the device menu. Thanks to a further extension of the input modules, the number of inputs can be extended up to 4 (applicable for Process Input). The device is based on an 8-bit microcontroller with 24-bit multi-channel sigma-delta converter, ensuring high precision and stability.
INPUT Number of inputs    1
DC Range Selectable from menu ±60 mV > 100 MΩ Input U ±150 mV > 100 MΩ U input ±300 mV > 100 MΩ U input ±1,200 mV > 100 MΩ U input
PM Range Selectable from menu 0...20 mA < 400 mV I input 4...20 mA < 400 mV I input ±2 V 1 MΩ Input U ±5 V 1 MΩ U input ±10 V 1 MΩ U input ±40 V 1 MΩ U input
    OHM Range       Menu-selectable with automatic range change 0...100 Ω 0...1 kΩ 0...10 kΩ 0...100 kΩ
Connection: 2, 3 or 4 wires

Large universal display - INGU

Reference : I FP 2119 according to INGU
Availability : tracked stock
Downloads :
• FR - Technical data Download file
