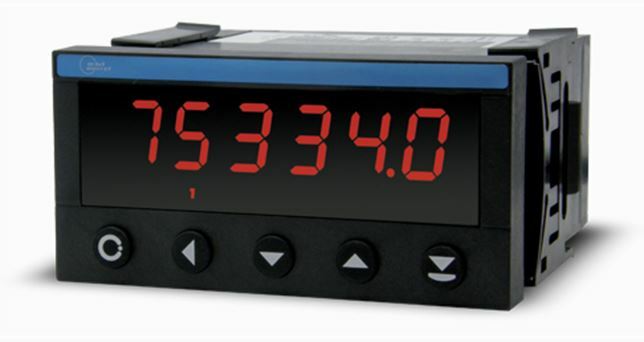

Universal counter - tachometer - chronometer - IN 4896 HZ

Multifunction display: high-performance counter, frequency meter and stopwatch

This versatile multifunction display combine three operating modes in a single device:

  • Meter
  • Frequency meter
  • Stopwatch

Technical specifications :

  • 6-digit red LED display for a optimal readability, even in demanding industrial environments.
  • Two configurable inputs :
    • Quadrature mode (ideal for applications with incremental encoders).
    • Up-Down mode (perfect for counting/uncounting with inductive sensors).

Key benefits :

  • Maximum efficiency Designed to provide optimum performance in all applications.
  • Ease of use Intuitive interface and simplified parameterization for a quick start.
  • Exceptional value for money A solution top-of-the-range at an attractive price.
  • Precision and stability : Equipped with a , guaranteeing reliable measurement, a long-term stability and a easy configuration.
Number of entries : 2 selectable in TTL, NPN/PNP 0...30/300 V (adjustable levels) Input frequencies : 0.1 Hz...50 kHz (SINGLE mode) 0.1 Hz...20 kHz (UP/DW mode: addition + control) 0.1 Hz...20 kHz (UP-DW Mode: addition / subtraction) 0.1 Hz...20 kHz (QUADR-frequency mode) 0.1 Hz...10 kHz (QUADR. mode - counter) (for duty cycle 50%) Measurement modes : 1 entry : Counter or Frequency meter 2 entries : Quadrature: Counter or Frequency meter UP/DW: Counter / Frequency meter A input, B direction UP -DW : Counter / Frequency meter A (addition), B (subtraction) TIME : Stopwatch RTC : Hour meter This product has optional relay and analog outputs.

Universal counter - tachometer - chronometer - IN 4896 HZ

Reference : IN 4896HZ following I FP 2118
Availability : 2 weeks
Downloads :
• FR - Technical data Download file
