Force or pressure transmitters

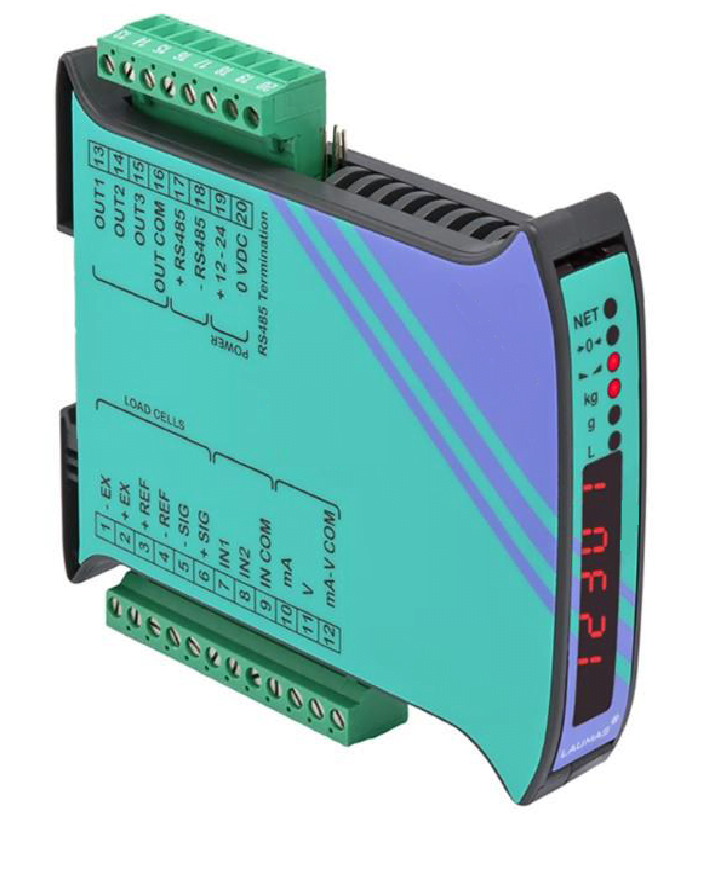

Gauge bridge interface to analog or BUS - TR FO RS485L

This strain gage bridge converter has numerous on-board functions and features such as :

Weight transmitter for rear panel mounting on Omega/DIN bar.
Vertical development for minimum footprint.
Dimensions: 115x25x120 mm.

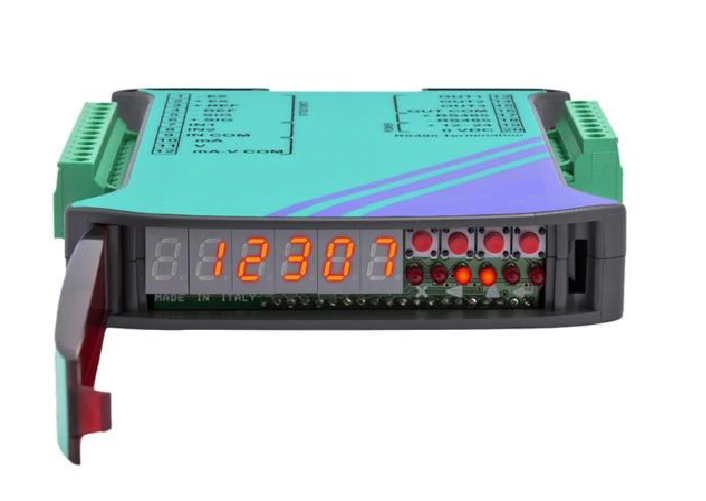

Semi-alphanumeric display with red LED, 6 8 mm digits.
6 segmentation LEDs.
Four buttons for calibration.
Removable screw terminals.
RS485 serial port for communication via ModBus RTU protocols,
ASCII Laumas or continuous one-way transmission.
3 relay outputs controlled by setpoint or via protocols.
2 optoisolated PNP digital inputs: status readout via serial communication protocols.
1 dedicated load cell input

Bus options available: Serial port RS485. Baud rate: 2400, 4800, 9600, 19200, 38400, 115200 (bit/s). Port CANopen. Baud rate: 10, 20, 25, 50, 100, 125, 250, 500, 800, 1000 (kbit/s). The instrument operates as slave in a synchronous CANopen network. Equipped with RS485 serial port. Port DeviceNet. Baud rate: 125, 250, 500 (kbit/s). The instrument operates as slave in a DeviceNet network. Equipped with RS485 serial port. Port CC-Link. Baud rate: 156, 625, 2500, 5000, 10000 (kbit/s). The instrument operates as Remote Device Station in a network CC-Link network and occupies 3 stations. Equipped with RS485 serial port. Port Profibus DP. Baud rate: up to 12 Mbit/s. The instrument operates as a slave in a Profibus DP network. Equipped with RS485 serial port. Port Modbus/TCP. Type: RJ45 10Base-T or 100Base-TX (auto-detection). The instrument works as slave in a Modbus/TCP network. Equipped with RS485 serial port. Port Ethernet TCP/IP. Type: RJ45 10Base-T or 100Base-TX (auto-detection). The instrument operates in an Ethernet TCP/IP network and is also accessible via a Web browser. Equipped with RS485 serial port. 2x ports Ethernet/IP. Type: RJ45 10Base-T or 100Base-TX (auto-detection). The instrument works as adapt in an Ethernet/IP network. Equipped with RS485 serial port. 2x ports Profinet IO. Type: RJ45 100Base-TX. The instrument works as device in a Profinet IO network. Equipped with RS485 serial port. 2x ports EtherCAT. Type: RJ45 10Base-T or 100Base-TX (auto-detection). The instrument works as slave in an EtherCAT network. Equipped with RS485 serial port. 2x ports POWERLINK. Type: RJ45 10Base-T or 100Base-TX (auto-detection). The instrument works as slave in a Powerlink network. Equipped with RS485 serial port. 2x ports SERCOS III. Type: RJ45 10Base-T or 100Base-TX (auto-detection). The instrument works as slave in a Sercos III network. Equipped with RS485 serial port.

Power supply and power consumption	12÷24 VDC ±10%; 5 W
Number of sensors - Sensor power supply	up to 8 (350 Ω) - 4/6 wires - 5 VDC/120 mA
Analog output linearity	<0.01% full scale - <0.01% full scale
Thermal drift - Thermal drift	<0.0005% full scale/°C - <0.003% full scale/°C
A/D converter	24 bit (16000000 points) - 4.8 kHz
Divisions (with ±10 mV measurement range and 2 mV/V sensitivity)	±999999 - 0.01 μV/d
Measurement field	±39 mV
Sensitivity of load cells	±7 mV/V (+/-30mV/V with TR FO RS485 HL version)
Conversions to the second	300/s
Displayable field	±999999
Number of decimal places - Reading resolution	0÷4 - x1 x2 x5 x10 x20 x50 x100
Digital filter - Readings per second	10 levels - 5÷300 Hz
Relay outputs	3 - max 115 VAC/150 mA
Optoisolated digital inputs	2 - 5÷24 VDC PNP
Serial ports	RS485
Baud rate	2400, 4800, 9600, 19200, 38400, 115200 (bit/s)
Optoisolated analog output	16 bit = 65535 divisions. 0÷20 mA; 4÷20 mA (up to 300 Ω) 0÷10 V; 0÷5 V; ±10 V; ±5 V (min 10 kΩ)
Humidity (non-condensing)	85%
Storage temperature	-30 °C +80 °C
Operating temperature	20 °C +60 °C
Relay outputs	3 - max 30 VAC, 60 VDC/150 mA
Operating temperature	-20 °C +60 °C
Use an external 12-24 VDC or class 2 power supply

Gauge bridge interface to analog or BUS - TR FO RS485L

Reference : TR FO RS485L to FP3580

Availability : stock
