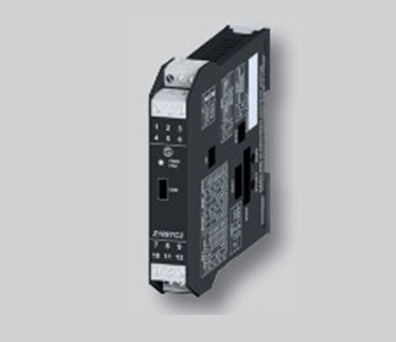

Analog converter transmitter for thermocouples and PT100 - TR PT
This is a temperature converter for thermocouple types J, K, E, S, R, N, T. It provides a standard 0/4..20 mA or 0..10 V analog output signal. 3-way galvanic isolation between power supply // input // output ensures signal integrity. This type of converter offers high accuracy (0.1%), fast response time (up to 0.1%), wide operating temperature range and low power consumption. In addition to the DIP switch, the module has a micro USB connector on the front, and can be configured by PC software (easy to set up) or dedicated Android device setup applications: start/end scale, additional input types, quadratic, filter, exhaustion, etc. We calibrate these modules using our own standard furnaces. metrology laboratory

Power supply 10...40 Vdc/19...28 Vac
Energy consumption 2,5 W
Insulation 1.500 Vac
LED status indicators Power supply, error, scale
Protection class IP20
Response time 35...140 ms
Interface Micro USB (front panel for settings)


Analog converter transmitter for thermocouples and PT100 - TR PT

Reference : FP 4201 next FP 4201
Availability : tracked stock
Downloads :
• FR - Technical data Download file
