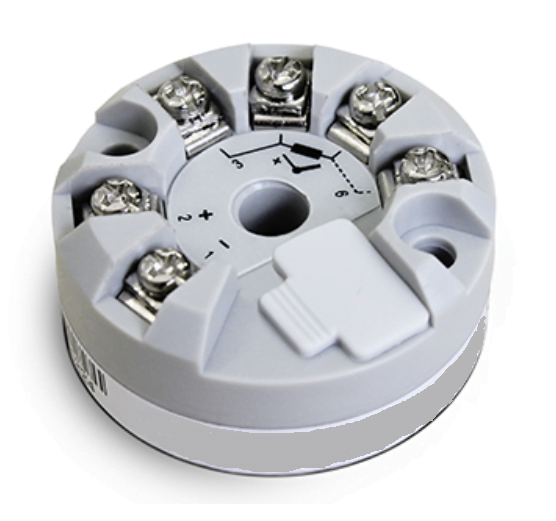

Head transmitter for PT100 pyrometric probe to 4..20 mA - CONVPT1004/20
Mounting: Temperature transmitter converter Sensor head mounting DIN B 33mm center distance Programmable input: (with programmable scale) - Thermocouples type J, K, T, E, N, R, S and B - Pt100 - PT1000 - Voltage 0 to 50 mV Output:- 4-20 mA 2-wire Linearized output for TC and Pt100, Pt1000 and NTC Cold junction compensation for thermocouples Pt100, PT1000 2, 3 or 4 wires Configuration via Freeware PC and smartphone Micro USB cable connection
Universal input Thermocouples J, K, T, E, N, R, S, B as well as Pt100, Pt1000 and NTC Linearized current output 4 - 20 mA or 20 - 4 mA loop-powered Cold junction compensation for thermocouples Line resistance compensation for Pt100 3 or 4 wires Direct PC configuration via microUSB port and free Windows software Power supply: 12 to 30 Vdc Typical RTD accuracy: ± 0.08% for Pt100 and Pt1000, ± 0.3°C for NTC Thermocouple and mV: ± 0.1 % Temperature influence: less than 0.16 % / 25 °C Working temperature : -40 to +85 °C Sensor breakage detection according to NAMUR NE43 recommendations Dimensions: 43.5 mm x 20.5 mm

Head transmitter for PT100 pyrometric probe to 4..20 mA - CONVPT1004/20

Reference : '-CONVPT1004/20 according to FP
Availability : large stock
Downloads :
• FR - Technical data Download file
