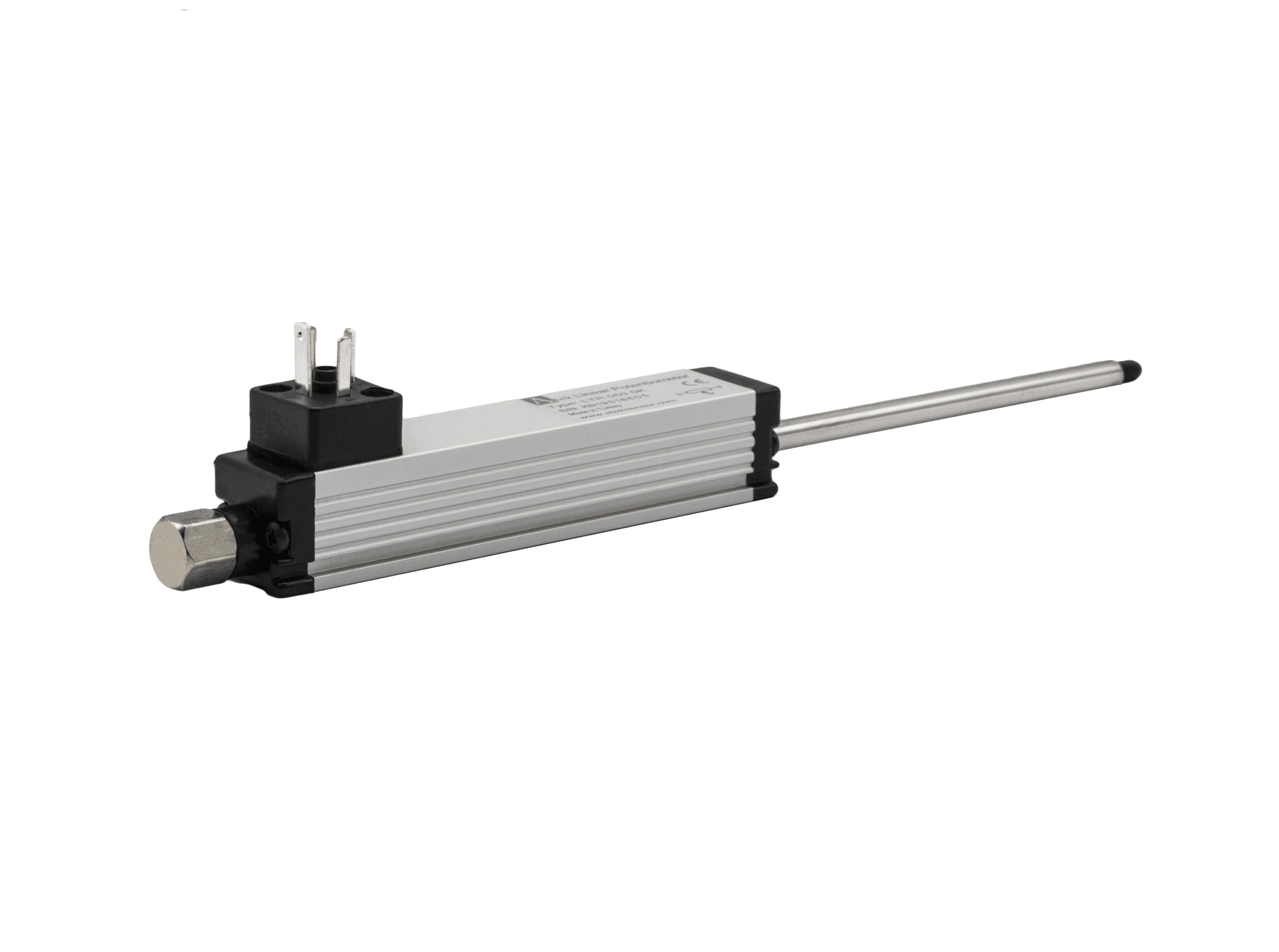

Analog potentiometric displacement sensor -LTR Measurement from 10 to 150mm

The LTR spring-return probe is an absolute position sensor. Measuring range from 10 to 150mm It measures on the potentiometric principle, which means it doesn't lose its position in the event of a power failure. Potentiometric, 4-20 mA (optional 0-20 mA) or 0-10V analog output options are available. Thanks to their linearized conductive plastic resistance alloy and special contacts, they are unaffected by wear and tear and operate for a long time, with a life cycle of up to 100 million. They are stable, linear and measure uniformly from 10 mm to 150 mm. The LTR series is the perfect measuring device for a wide range of industrial applications, such as foil manufacturing, the wood industry, textile or packaging machinery, conveyor belts, medical applications, construction technology...

ELECTRICAL DATA
Model	LTR 010	LTR 025	LTR 050	LTR 075		LTR 100	LTR 125	LTR 150
Stroke (mm)	10	25	50	75		100	125	150
Displacement (mm)	12	27	52	77		102	127	152
Linearity	±%1	±%0.5	±%0.4	±%0.25		±%0.2	±%0.2	±%0.2
Repeatability	0.01 mm
Max. speed	5 m/s
Output signal	Potentiometer				4-20 mA (opt. 0...20 mA) or 0-10V
Power supply	42V max.				12...30 VDC
Resistance	5K, 10K (optional other)				-
Resistance Tolerance (±%)	20				-
Resolution	Infinite
Electrical connection	DIN 43650-C connector, M16 or 3 x 0.14 mm connector² shielded PVC cable
Operating temp.	-30°...+100 °C
Service life	100 million
Ball joint	Stainless steel
Degree of protection	IP40

Analog potentiometric displacement sensor -LTR Measurement from 10 to 150mm

Reference : '-LTR following FP4229

Availability : 1 week
