Thermocouple and PT100 cables

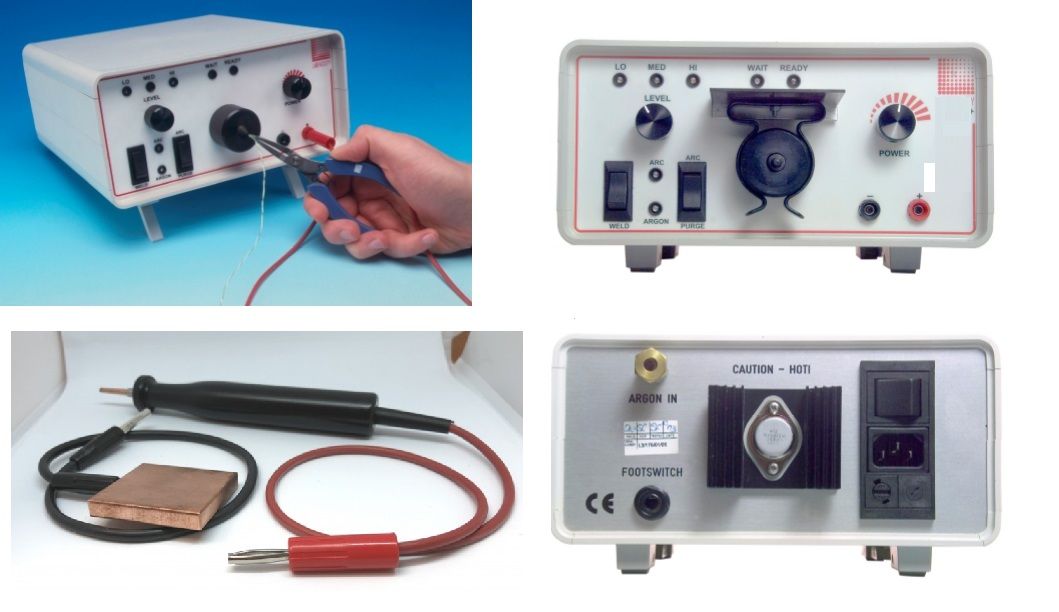

Hot Spot Machine - MPC2

This machine has been designed for heavy thermocouple users such as laboratories or the heat treatment sector. It offers complete autonomy and enables you to produce finished thermocouples yourself, using thermocouple wires. No special skills are required to operate the welding machine. The welder can be operated via the front panel or a foot pedal. This model is suitable for wire diameters from 0.1 mm to 0.8 mm without the use of Argon gas. If Argon gas is used, a hose purge is provided during operation. All accessories required to produce quality thermocouples are supplied with the equipment.

Type of welding: Arc welding Energy emitted: 0 to 60 joules Welding capacity : Wires between 0.1 and 1.1 mm Cycle time: Minimum 5 to 10 welds/min Dimensions Length: 220 mm Height: 120 mm Depth: 250 mm Weight: 4 kg Power supply: 110 to 120 Vac or 220 to 250 Vac (50 Hz - 60 Hz) Consumption: 170 VA max and 20 VA on load

Hot Spot Machine - MPC2

Reference : MPC2 according to FP 2161

Availability : 1 week

Downloads :
