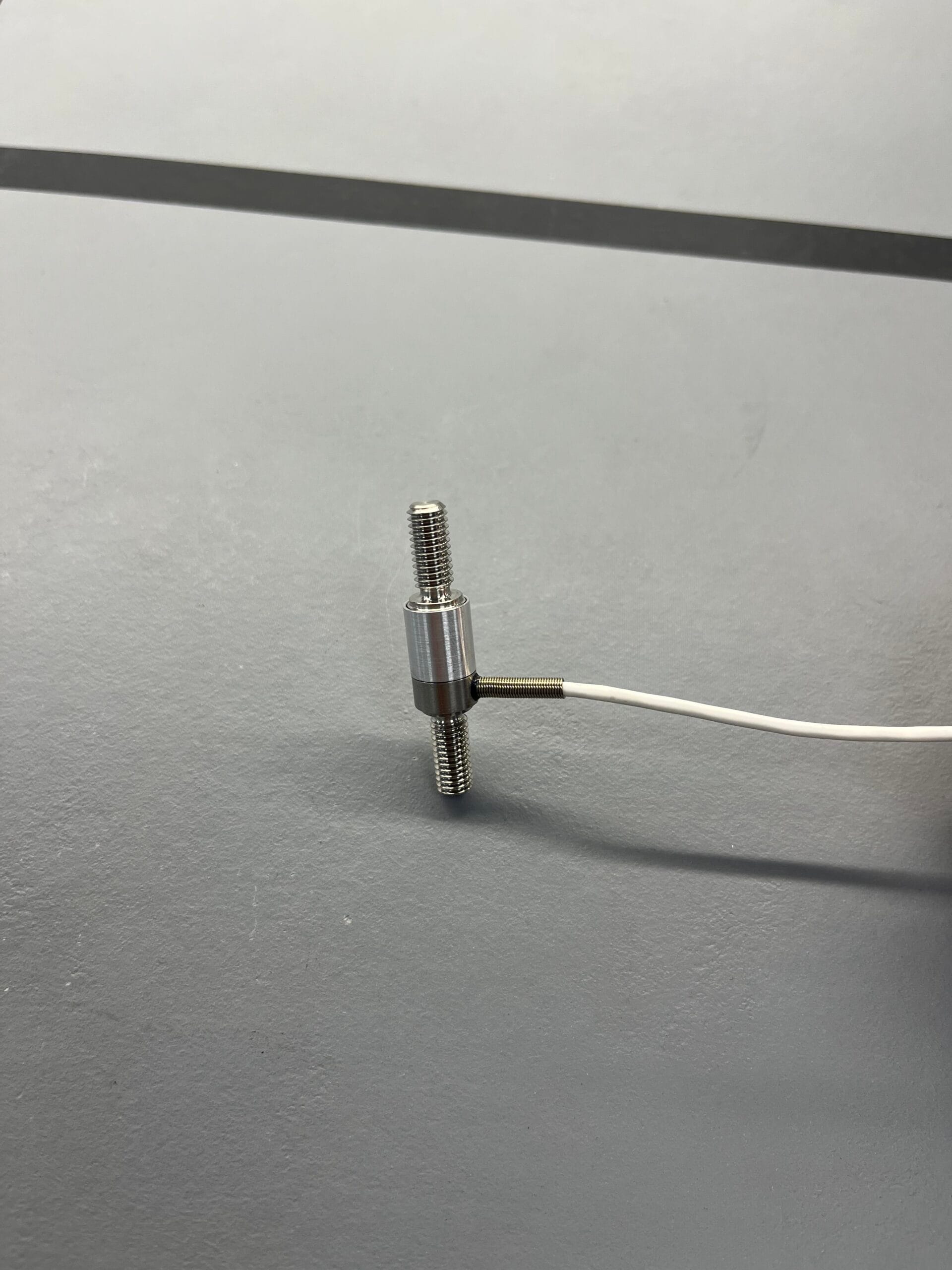

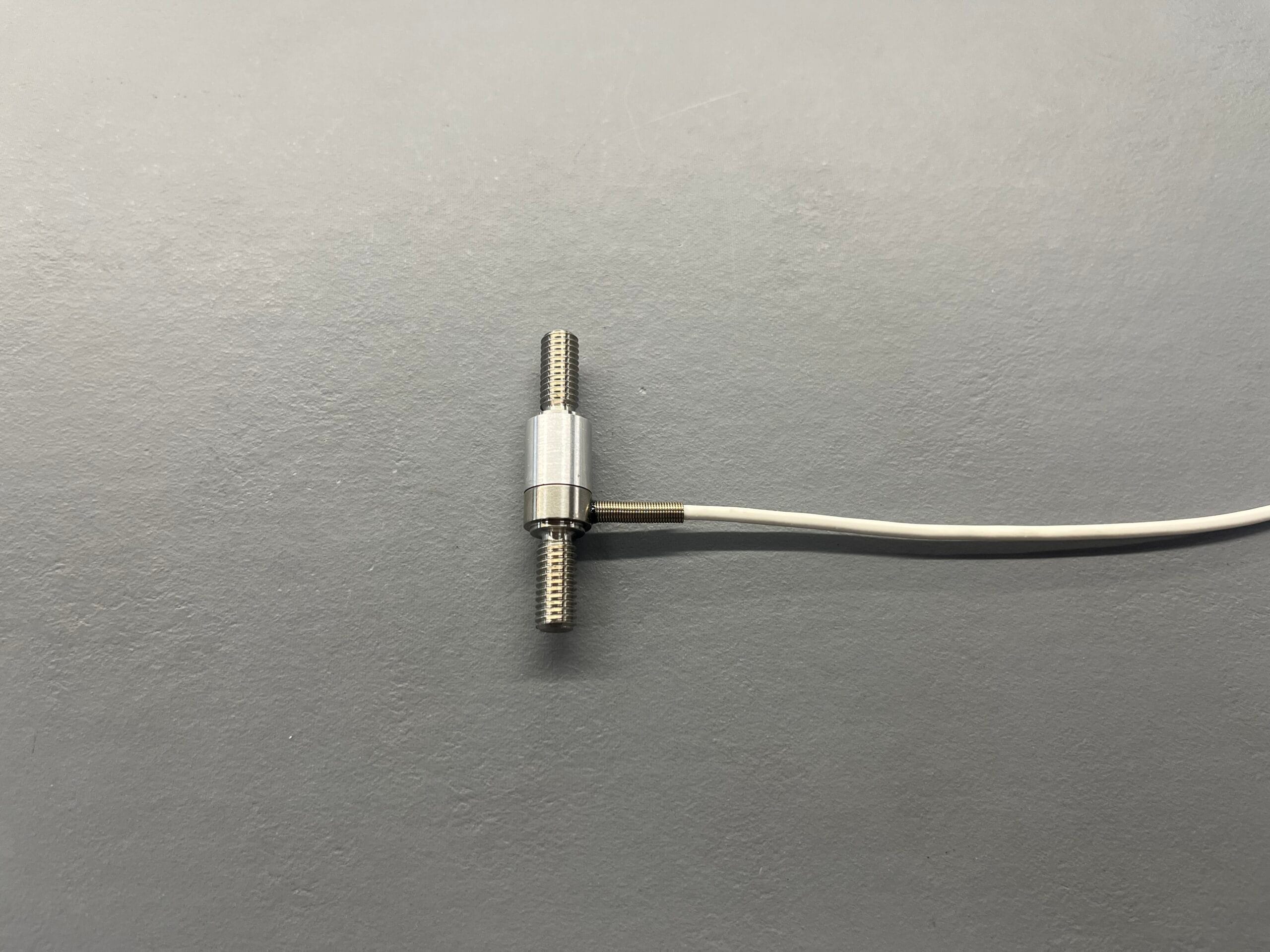

FTCP3024 miniature tension/compression transducer: Small size, high precision

Designed to meet the requirements of traction and compression, This miniature (46mm long), ultra-light (16g excluding cable) sensor is equally well suited to both static and dynamic applications. Thanks to its strain gages in micromachined silicon, it offers a optimum stability and precision, even in the the most demanding environments.

Its compact design and two integrated threads (M6) make it easy to install, even in confined spaces, while guaranteeing maximum safety. fast, reliable integration in industrial environments.

Extended measuring range from 50 N to 5,000 N, for maximum adaptability to your needs.

Why choose this sensor?

• Robustness Design adapted to industrial constraints (aeronautics, automotive, medical, electronics...)
• Precision Silicon strain gage technology for reliable results (e.g. detection of micro-deformations).
• Flexibility Simplified installation thanks to M6 threads.
• Versatility Ideal for static and dynamic measurements.

Examples of key M6 sensor applications in industrial R&D and testing :

• Mechanical testing : Characterization of materials (composites, metals), fatigue and bonding tests...
• Product development : Validation of prototypes (robots, medical devices), tool calibration...
• Quality control : Checking assembly forces (clamping, crimping) and safety tests...
• Search : Biomechanics, micro-robotics, studies on innovative materials...
