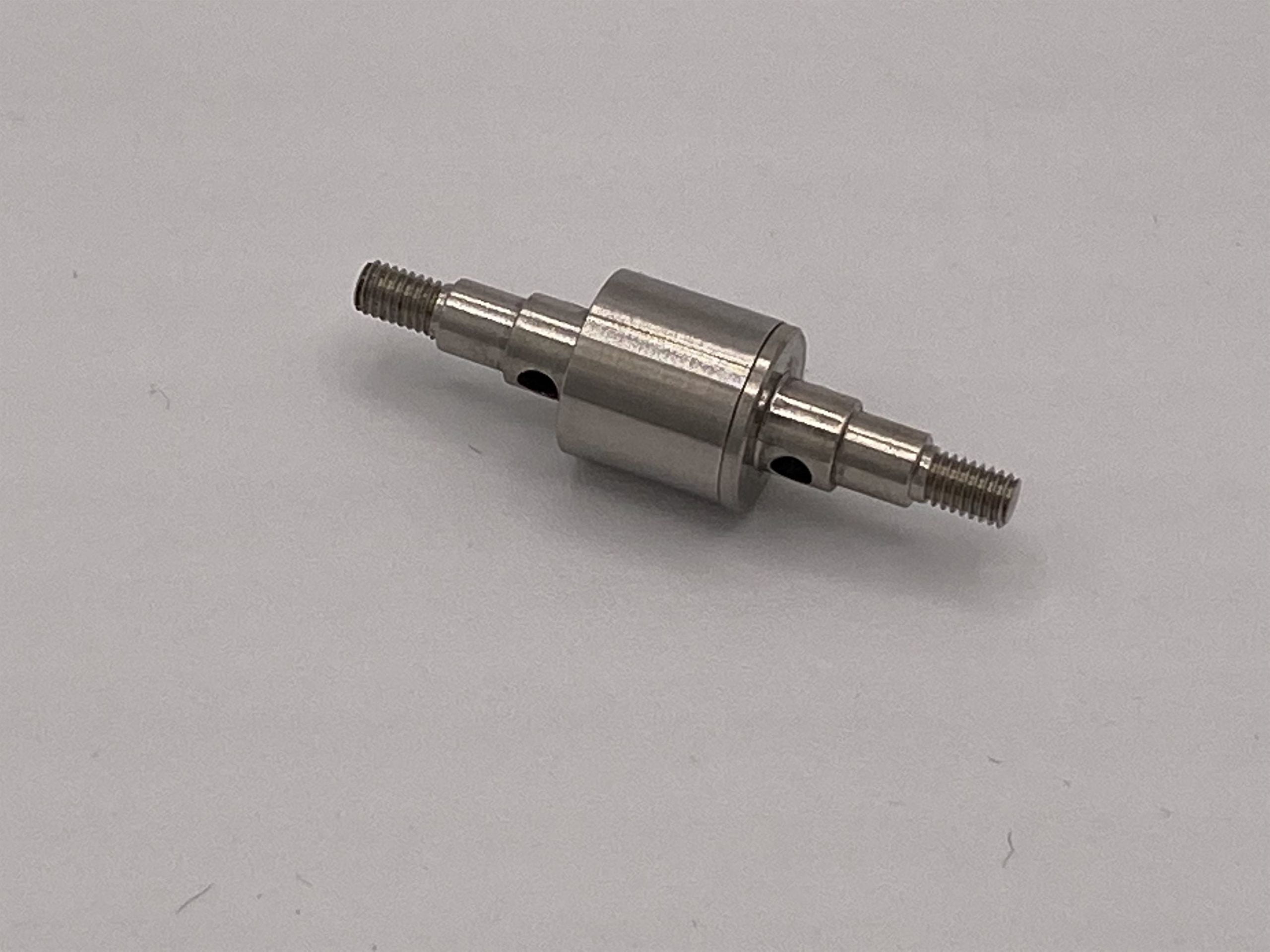

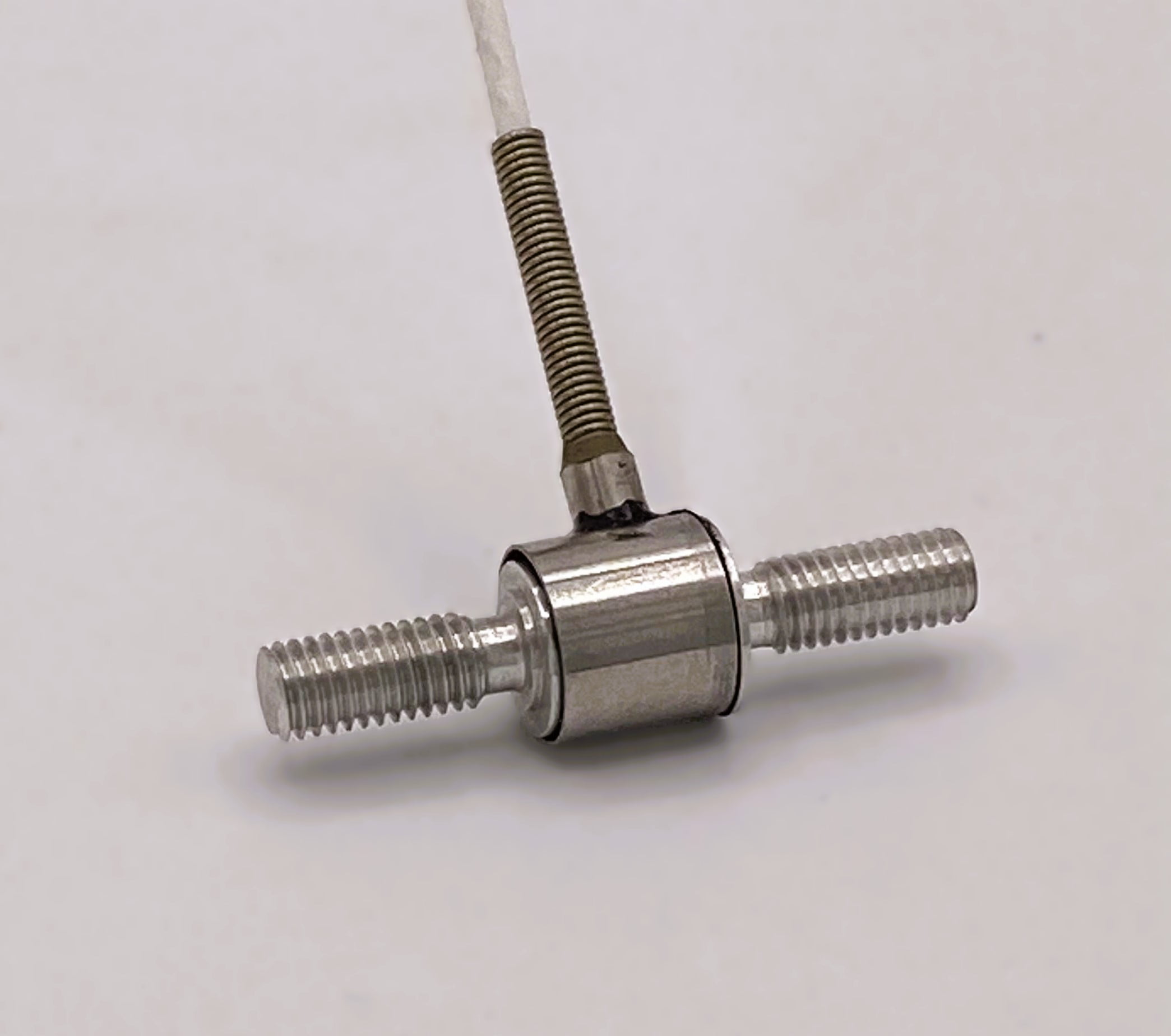

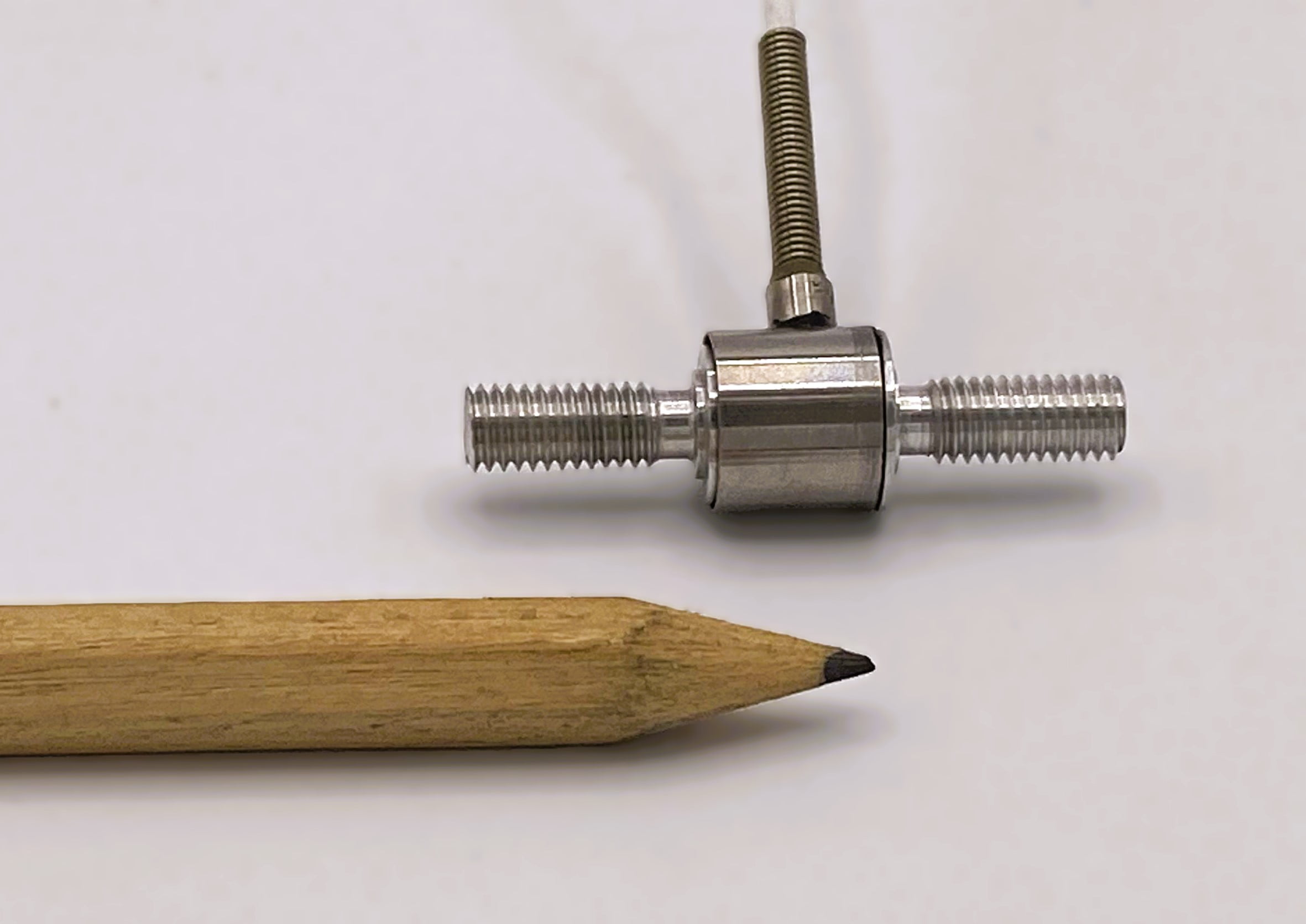

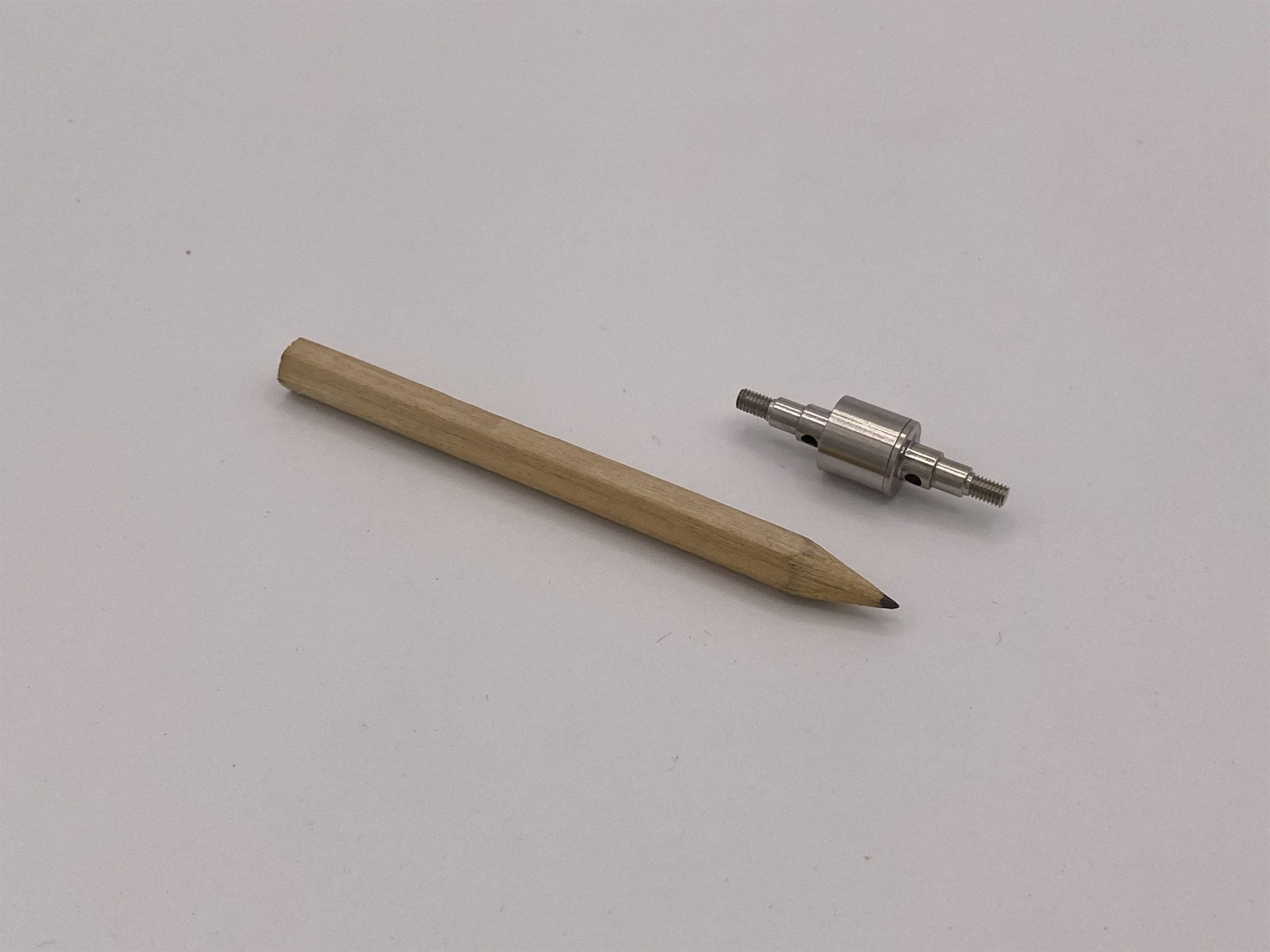

Designed to meet the requirements of compression force measurement (500 to 10,000 N measurement range), this miniature sensor excels in both static applications that dynamics. Thanks to its , it offers a , even in the most demanding environments.
MESUREX offers a complete range of conditioners and treatment systems for :
| Power supply | 10 Vdc | |
| Operating temperature | -40°C to 120°C | |
| Compensated temperature | 0°C to 60°C | |
| Linearity | ≤± 0.5% EM | |
| Hysteresis | ≤± 0.5% EM | |
| Zero drift | <2% EM /50°C | In the compensated range |
| Sensitivity drift | <2% of value read /50°C | In the compensated range |
| Input impedance | 1KΩ to 3KΩ | |
| Output impedance | 500Ω to 1KΩ | |
| Isolation | > 100MΩ at 50 Vdc | |
| Thread | Male / Male; Male / Female; Female / Female | Standard |
| Output cable | 2 m | Other lengths on request |
| Calibration | Compression |
Do you have a project in the design phase? Are you looking for measurement solutions tailored to your technical and regulatory requirements? Contact us to discuss your requirements or get a quote.
Our quality system is ISO 9001 and EN 9100 certified, guaranteeing controlled processes to meet industry standards.
In compliance with the main standards: DO 160, MIL-STD, AMS 2750, we guarantee optimum reliability in the most extreme environments.
Each component is identified by batch and serial number. We keep all material certificates and conformity documents for full traceability.
