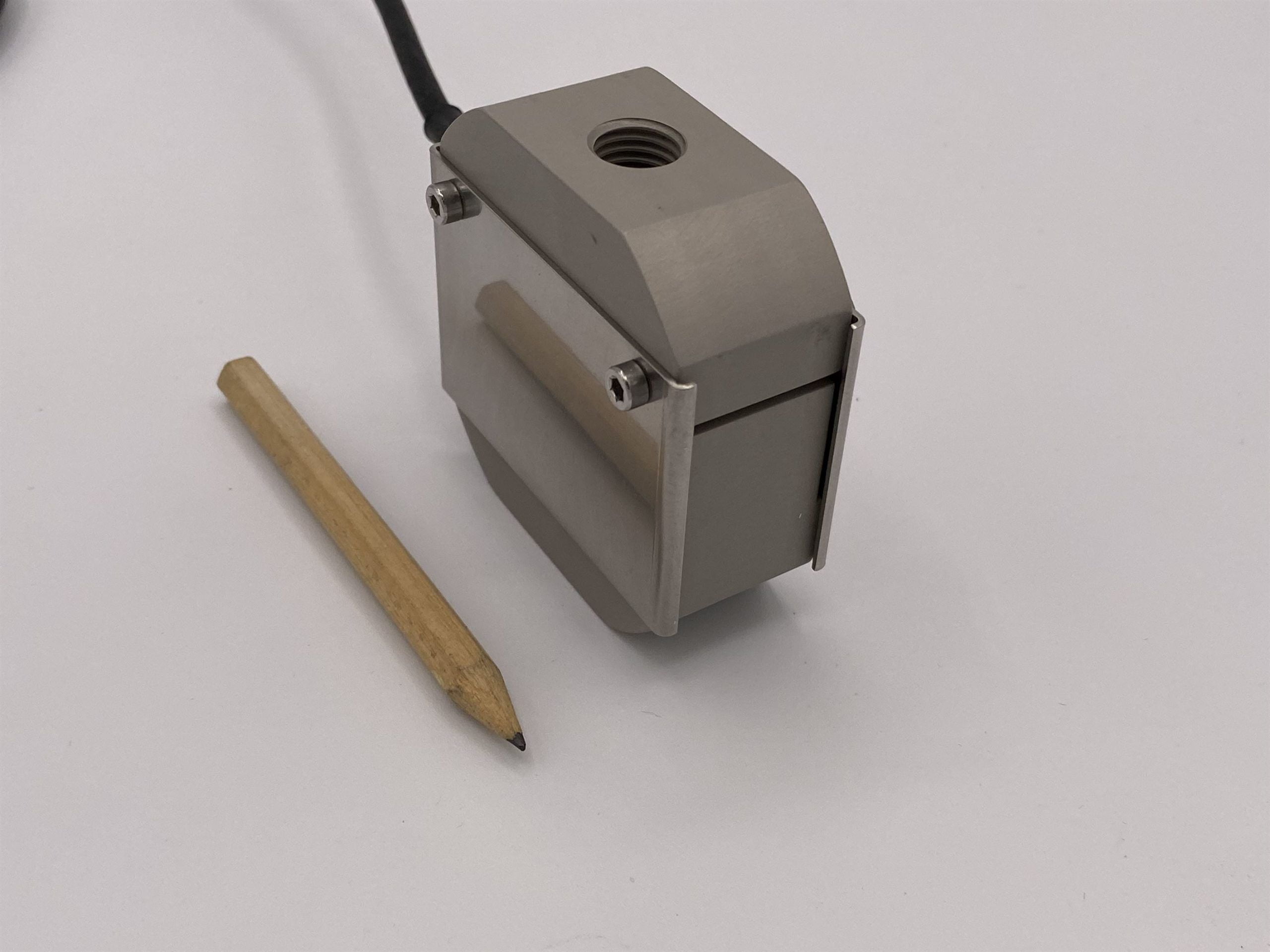

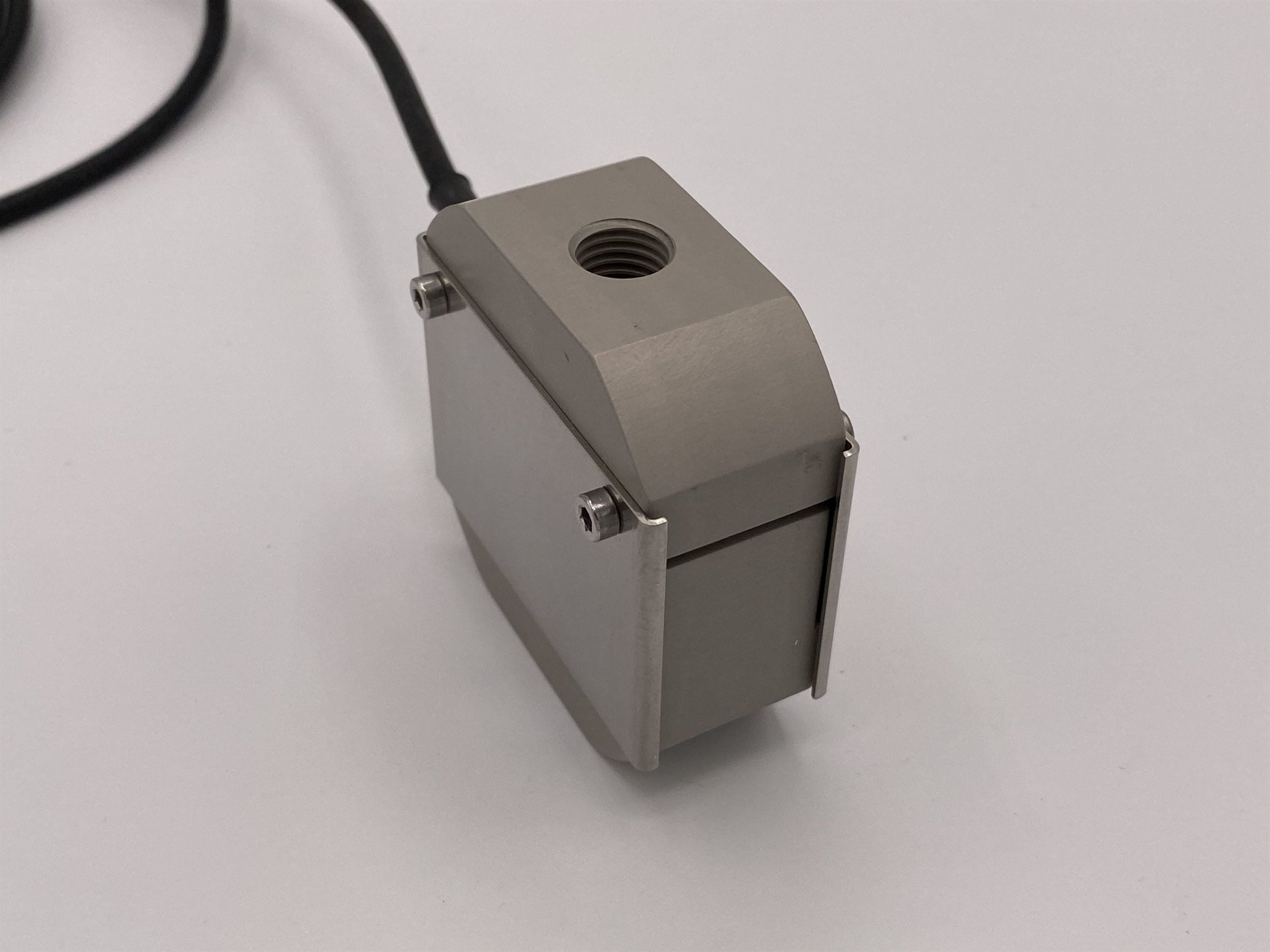

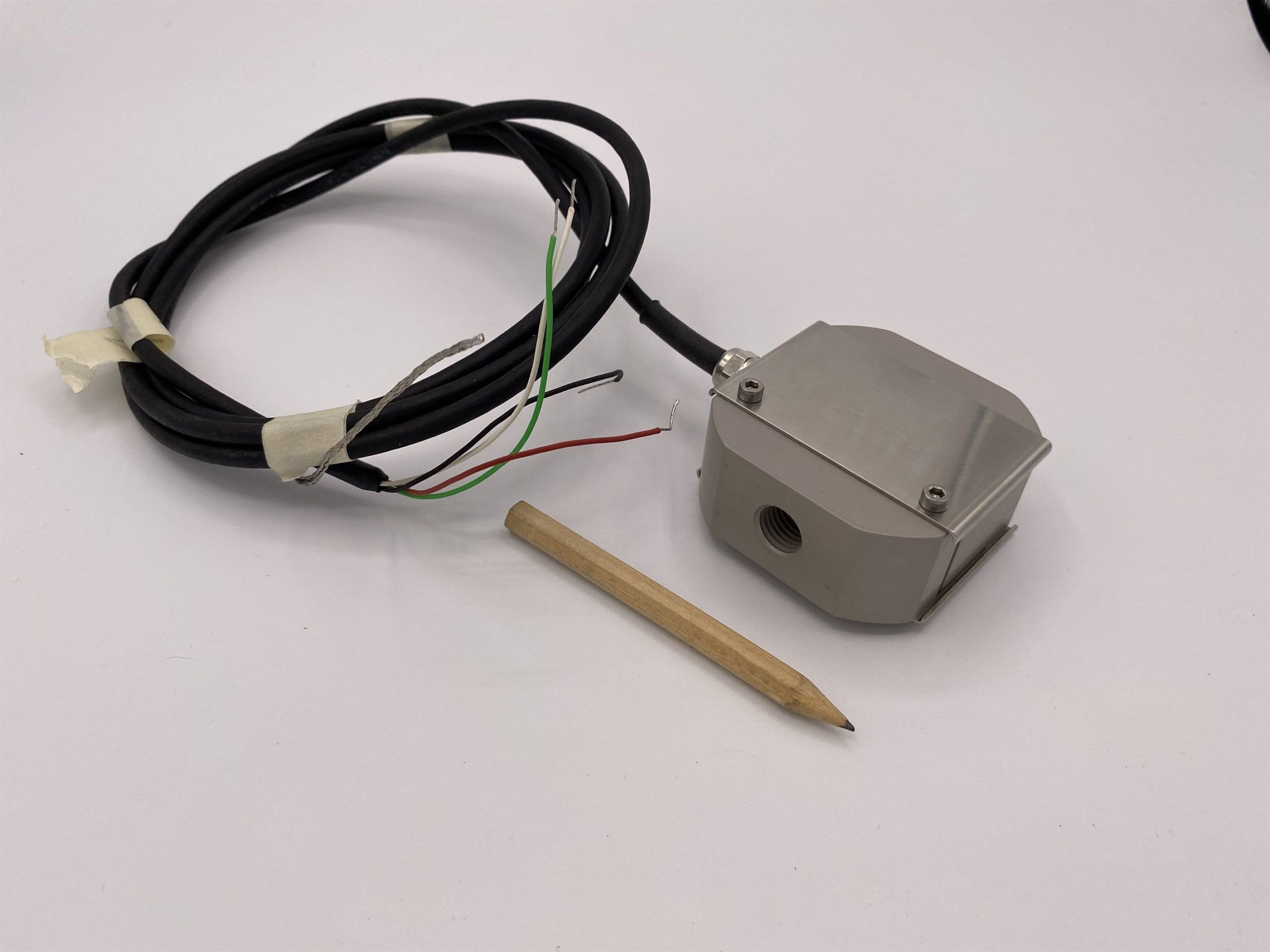

Economical S-shaped tension/compression sensor - FTCS
S-type force transducer Uses bonded strain gage principle working in tension/compression. 2 m cable output as standard. Low-level signal 2 mV/V. This rugged transducer is ideal for high-precision measurement on test benches and in industry. Its level of protection means it can be used in aggressive environments. Line-mounted analog output or with a DIN rail transmitter. MESUREX performs the calibration of these sensors on our premises. metrology laboratory. A measurement report and certificate of conformity are supplied with the sensor.
MEASURING RANGES (EM) 50N /100N / 200N / 500N / 1000N / 2000N / 5000N / 10000 N Permissible overload: 1.5 x EM Material: Aluminum or stainless steelSteel Power supply: 10 Vdc (10 to 30Vdc in amplified version) Operating temperature: -20°C to 80°C Storage temperature: -30°C to 85°C Compensated temperature: 0°C to 60°C Signal drift: <0.5% from EM / 60°C within compensated range Zero drift: <0.5% from EM / 60°C within compensated range Accuracy: ± 0.1% Linearity: ± 0.1% Hysteresis: ± 0.1% Sensitivity: 2mV/V EM offset: ± 0.5% Isolation : ≥ 1000 MΩ at 50 Vdc Protection rating: IP50 Input impedance: 350Ω Output impedance: 350Ω (gauge output) 1kΩ (amplified output) 0.5 to 4.5 V in amplified version Cable output: 2m as standard Traction / Compression calibration

Economical S-shaped tension/compression sensor - FTCS

Reference : FTCS according to FP3301 Rev E
Availability : large stock
Downloads :
• FR - Technical data Download file
