Immersion thermocouples - AVI

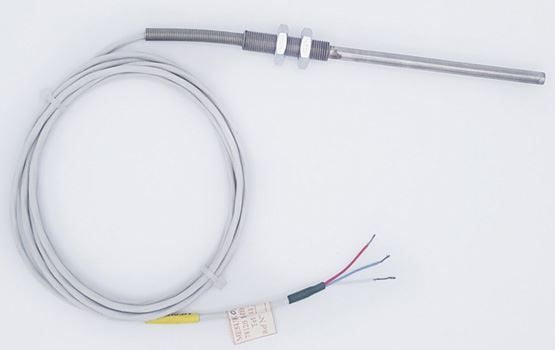

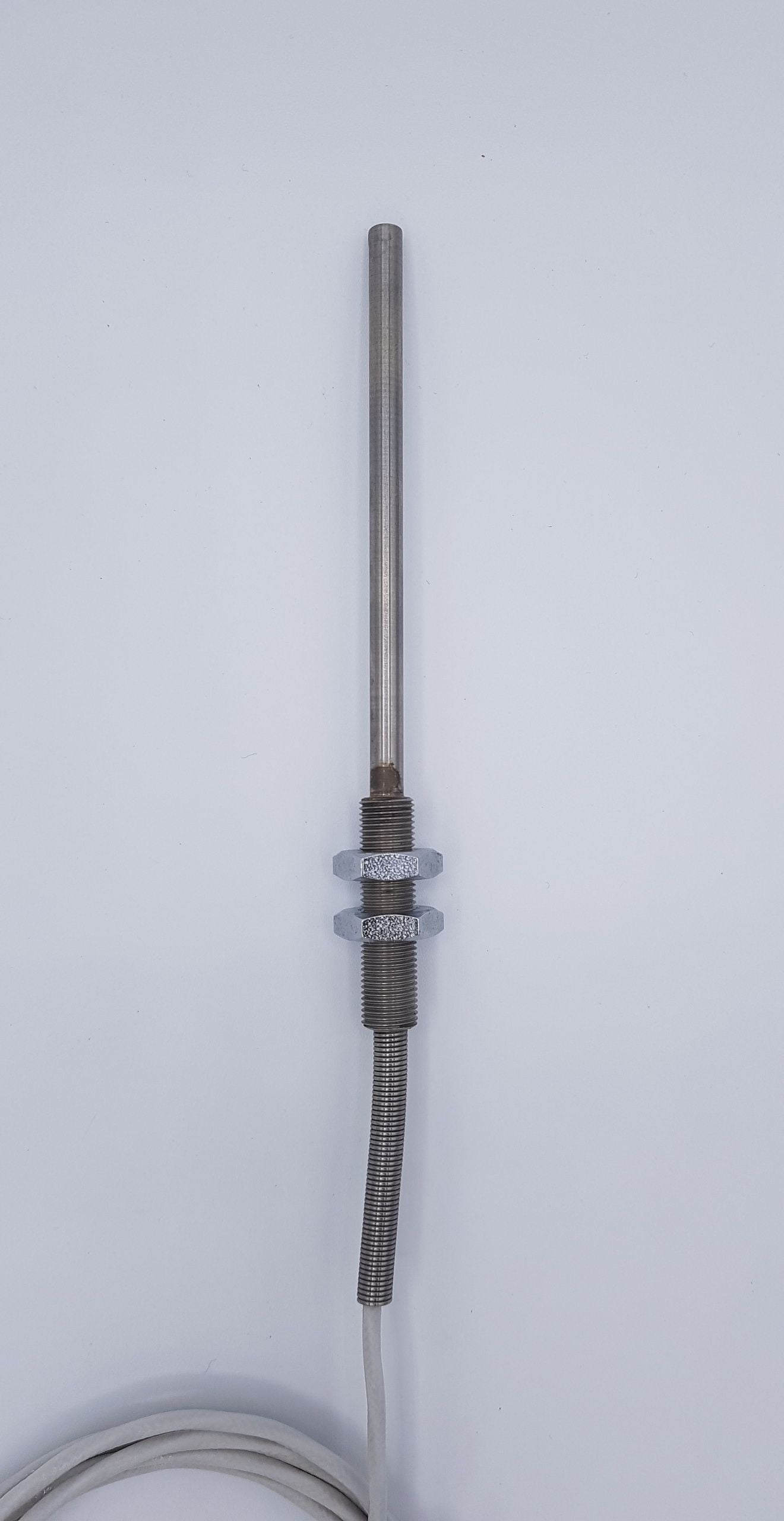

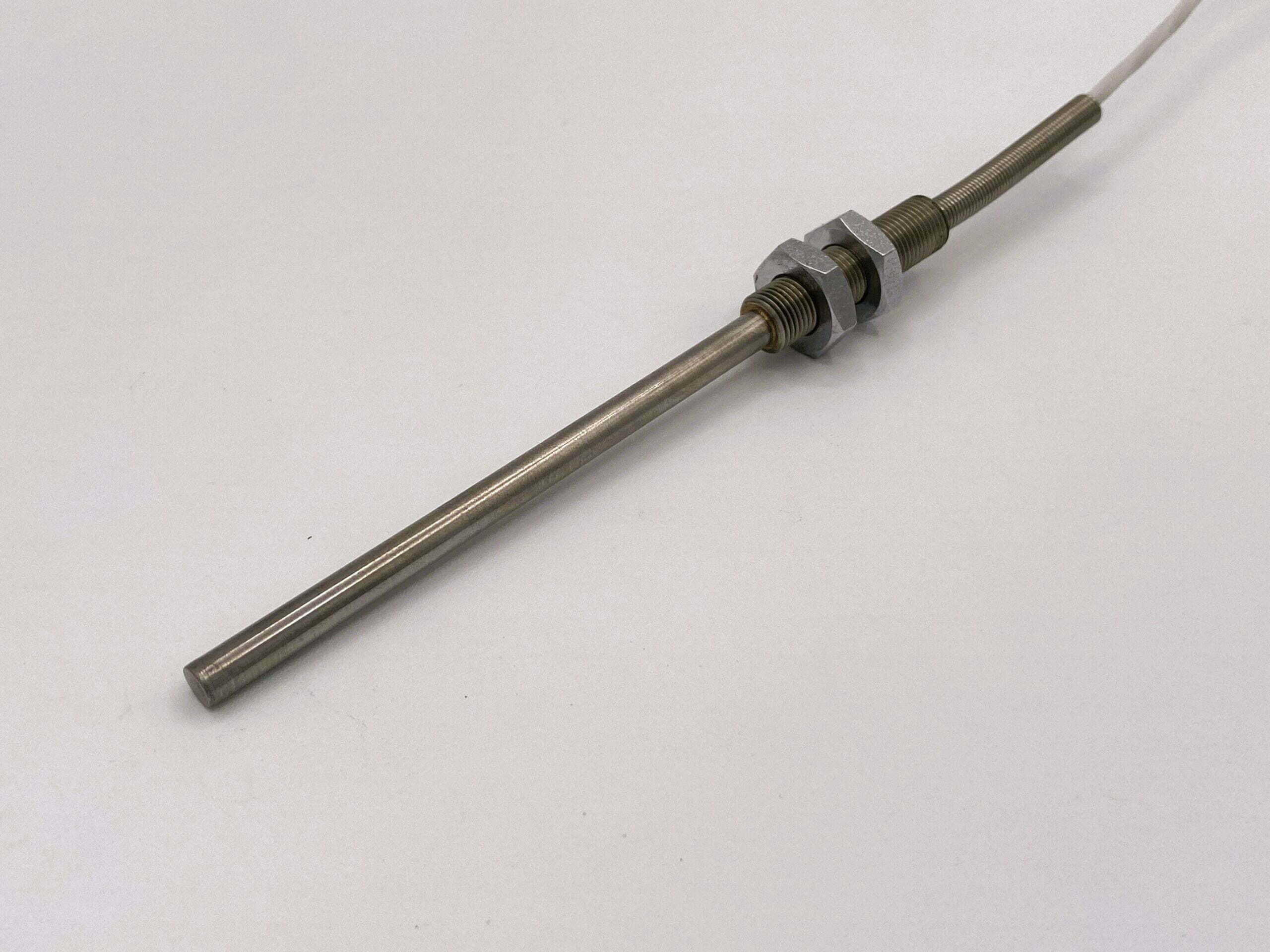

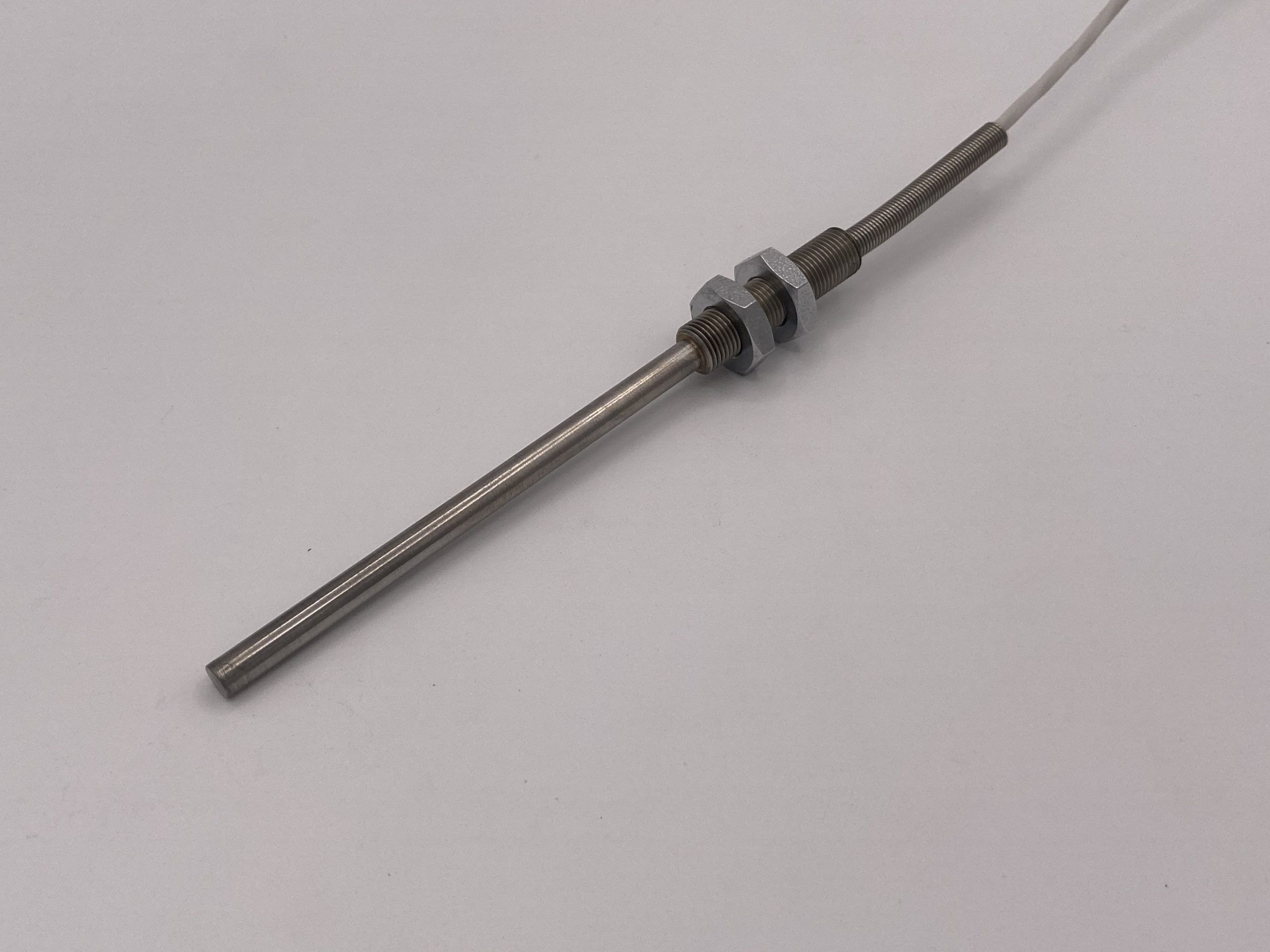

This temperature thermocouple is specially designed for immersion bath temperatures. This model is watertight and directly fitted with a threaded connection. The tube is made of stainless steel, with an optional Teflon coating. We offer this product with different types of thermocouple (T, N, J, K) in class NF EN 60584-2. On request, we can produce a calibration certificate from our metrology laboratory. We can also pair this sensor with a portable display or a table-top display unit.
This sensor has an M10x100 threaded body as standard, but we offer all pitches (metric, GAS, NPT) depending on the application. Connection is via a 2 m compensated Teflon shielded extension cable (250°C resistance), but we also offer silicone or PVC (depending on operating temperature).

Immersion thermocouples - AVI

Reference : AVI series - FP 2191
Availability : 2 weeks
Downloads :
• FR - Technical data Download file
