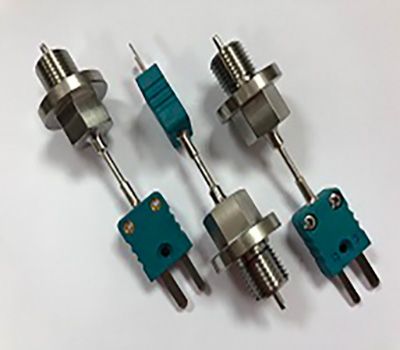

Thermocouple threaded connection M16x150 - CRR
Mineral-insulated type K thermocouple with integrated M16X150 stainless steel fitting. On request, the length under thread is 5, 10, 20, 30 mm and others, lined with 2 mm diameter.
Terminated by miniature connector. This robust, low-cost thermocouple is ideal for temperature measurements up to 200/250°C in solid, liquid or gaseous media.
One-piece construction.
Thermocouple type K,J,T,N etc., with integrated M16x150 stainless steel threaded fitting. Temperature resistance up to 250° or more, depending on version and mounting. Jacket diameter 2 mm Length under thread 5mm with hot solder isolated from earth. Integrated miniature male connector (choice of K,J,T,N etc.) For insertion into pipes, ducts and hoses. Good pressure resistance.

Thermocouple threaded connection M16x150 - CRR

Reference : CRR series M16X150 - FP 2806
Availability : tracked stock
Downloads :
• FR - Technical data Download file
