Threaded temperature sensors
Home

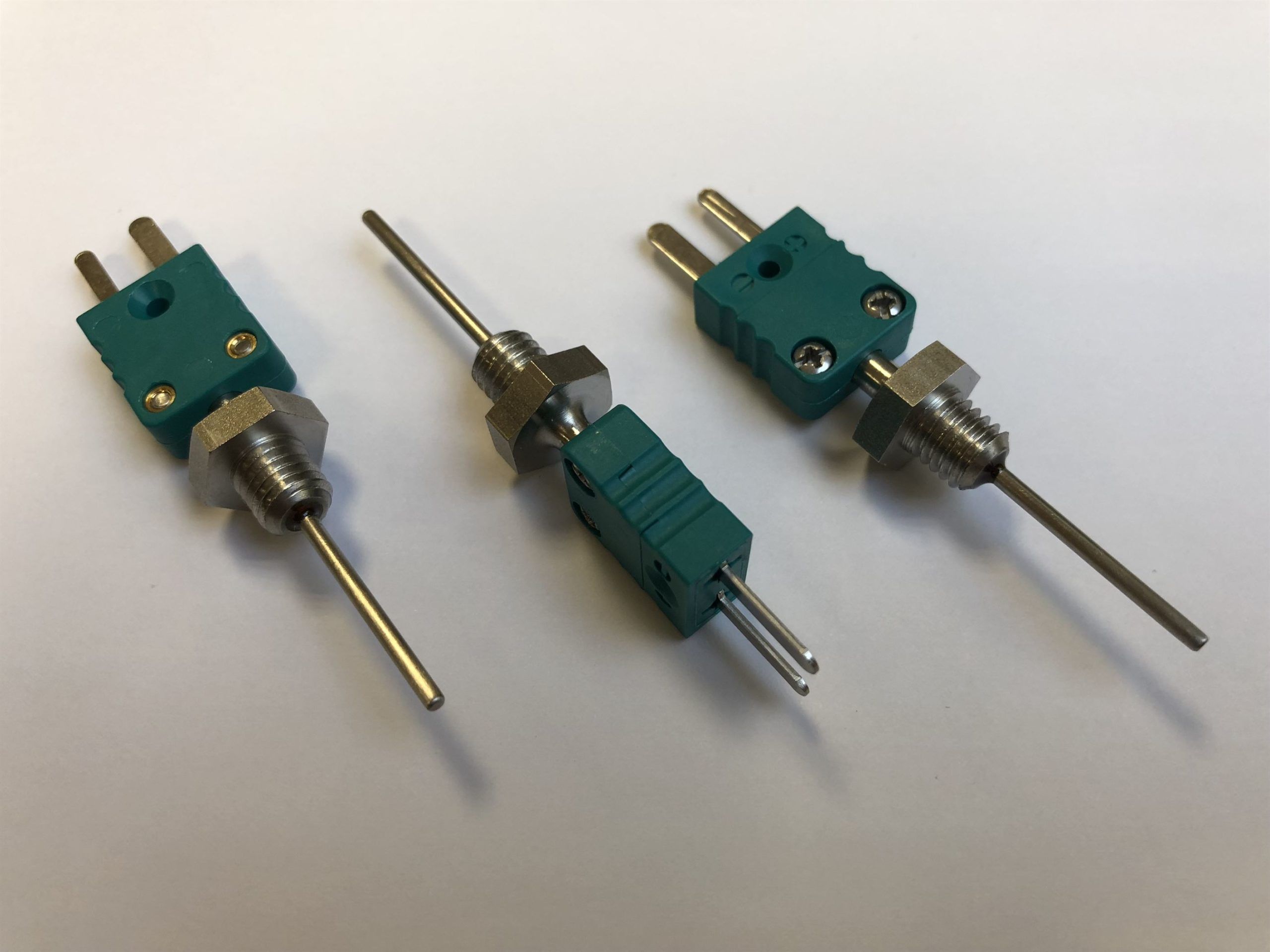

Thermocouple threaded connection M8X125 - CRR
Mineral-insulated type K thermocouple with integrated M8X125 stainless steel threaded connection. Length under thread adjustable on request 10,20,30 mm and others, Jacketed version, diameter 2 mm. Terminated by miniature connector. This robust, low-cost thermocouple is ideal for temperature measurements up to 200/250°C in solid, liquid or gaseous media.
One-piece construction.
Thermocouple types K, J, T, N, etc., with integrated M8x125 stainless steel fitting. Temperature resistance 250° or more, depending on version and mounting. Jacket diameter 2 mm Length under thread 10 mm (adjustable on request) Hot solder isolated from ground Integrated miniature male connector (choice of K, J, T, N, etc.) For insertion into pipes, ducts, hoses, injection tools. Good pressure resistance. Very compact and robust thermocouple.

Thermocouple threaded connection M8X125 - CRR

Reference : CRR series M8X125 - FP 2805
Availability : tracked stock
Downloads :
• FR - Technical data Download file
