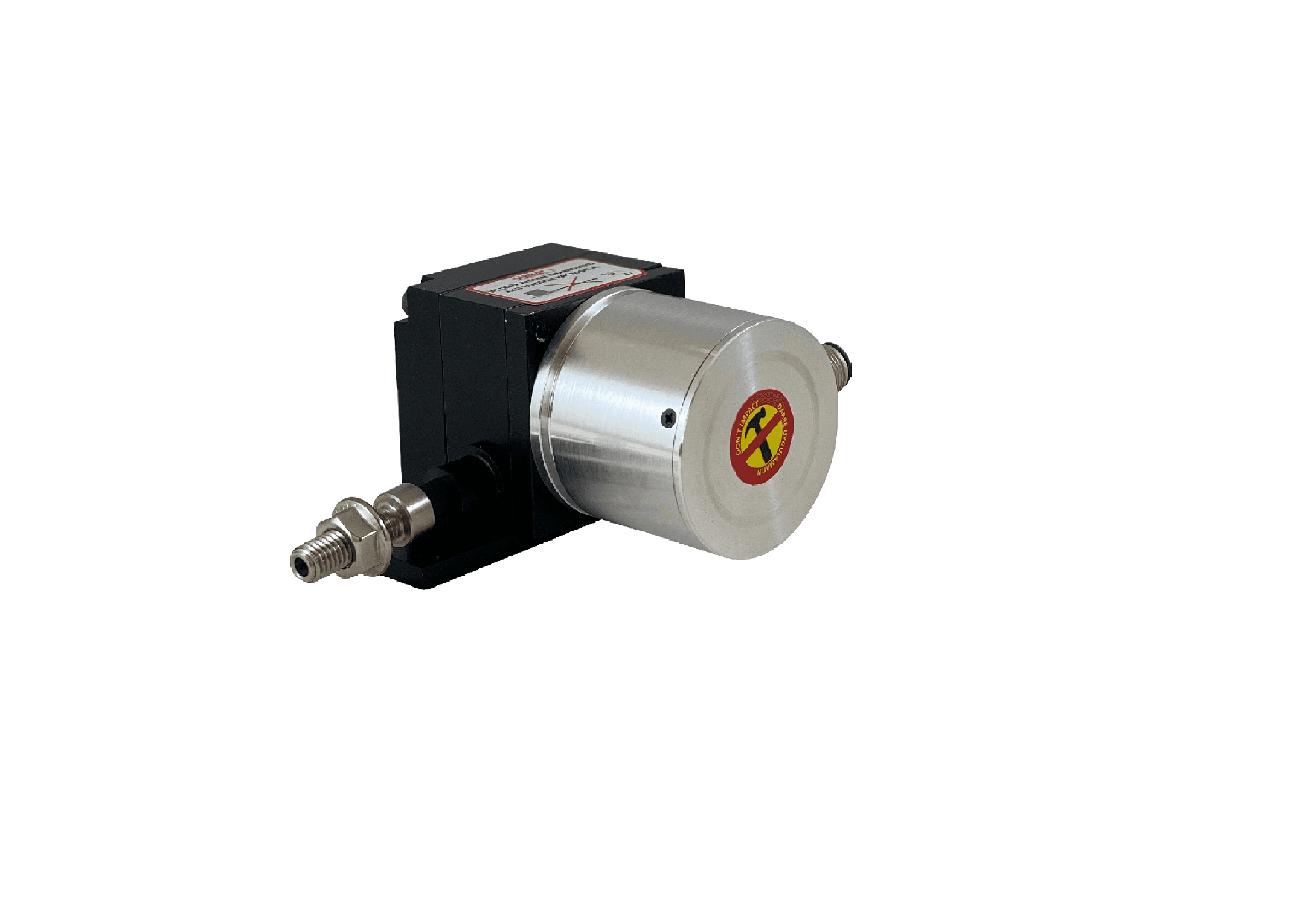

High resolution cable sensor 400 to 1200mm -DEPFILAWP-HR
The high-resolution DEPFILAWP-HR series of stainless steel wire-pulling sensors measures wire pulling and winding (stroke lengths up to 1200 mm). Linear motion is converted to analog or CANopen output. This compact, robust instrument is easy to install and can be used in a wide range of industrial applications, such as : handling and lifting systems (elevators, lifting platforms, forklift trucks...), processing and manufacturing machinery (wood/glass/paper/metal machines, injection molding...), automation, robotics and positioning (industrial robots, X-Y axis motion, horizontal control equipment...), hydraulic and pneumatic systems (air compressors, flood protection, presses...), measurement, control and quality (liquid level measurement and position control...).
Stroke length (measurement) For analogue output: 400...1200 mm Stroke length (measurement) For CANopen output: 0...1200 mm Max. speed 2 m/s Force required 5 N Linearity ±0.25 % FS Operating temperatures -25 °C ... +85 °C Relative humidity 10 %...90 % Weight ~460 gr Protection class IP67 Material of construction Housing: Aluminium Measuring wire: Stainless steel

High resolution cable sensor 400 to 1200mm -DEPFILAWP-HR

Reference : '-DEPFILAWP-HR according to FP4224 rev A
Availability : 1 week
Downloads :
• FR - Technical data Download file
