Add to this the customization options (cable length, connectors, etc.) offered by Mesurex, and there is no doubt that PABT will become the the essential choice for demanding professionals, who are looking for reliability and performance in their test and trial projects, especially where weight and/or space constraints are involved.
Contact us today: me*****@*****ex.fr // 01 30 41 23 62
#R&D #innnovation 1TP5Sensor 1TP5Pressure #emperature 1TP5Precision 1TP5Aerospace 1TP5Defense 1TP5MechanicalSports

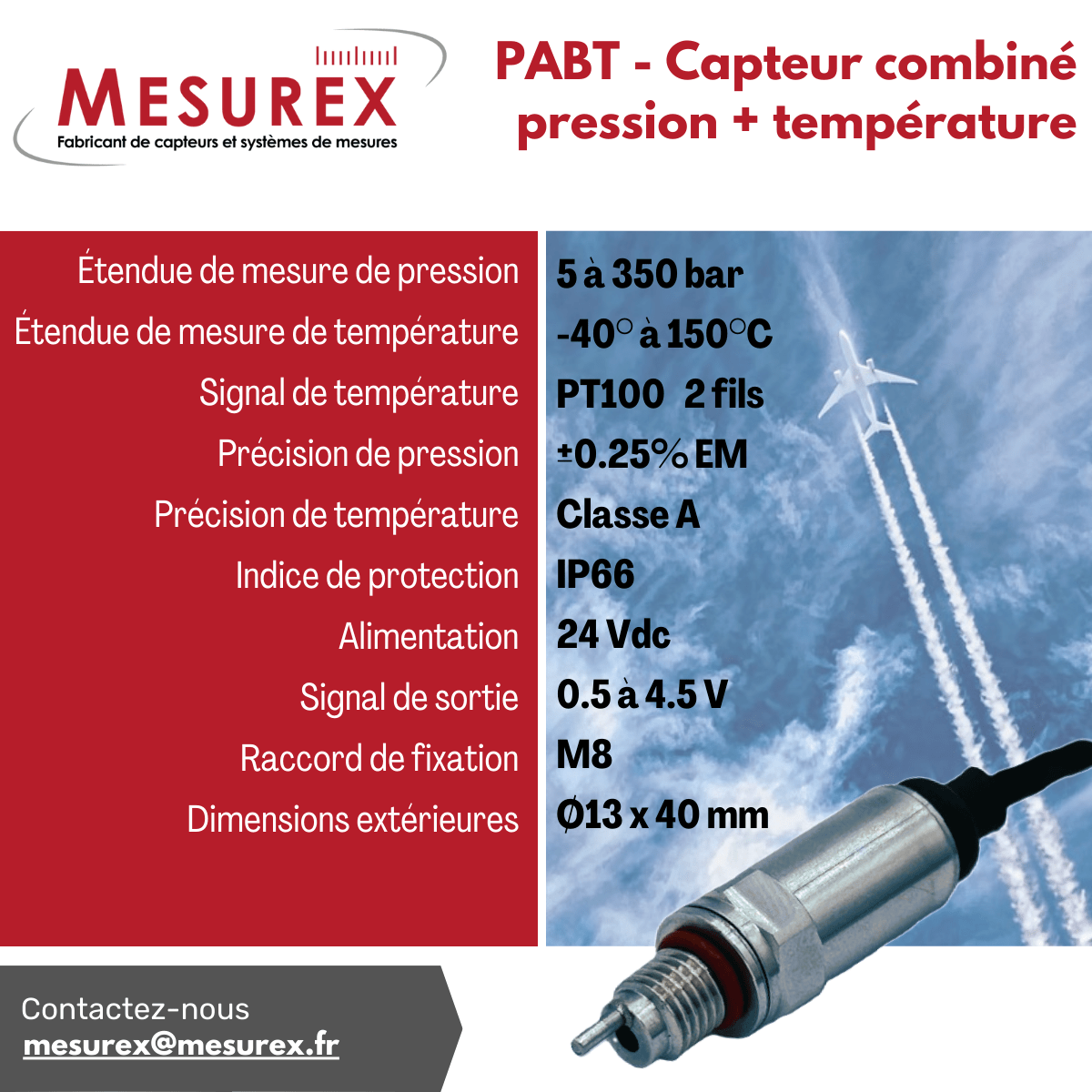

After months of research, rigorous testing and innovative development, Mesurex is proud to unveil the PABT, combined sensor designed to simultaneously measure pressure and the temperature, with remarkable precision.
This miniature sensor (external dimensions Ø13 x 40 mm) embodies Mesurex's excellence in sensor design and manufacture, incorporating dual measurement technology:
- measurement of absolute pressure, in a range from 5 to 350 bar (at a compensated temperature of 0° to 100°C as standard),
- at the same time as the temperatures from -40° to 150°C, thanks to the PT100 platinum resistor, cleverly placed in the sensor nose, which guarantees optimal and precise measurement (accuracy Class A in temperature, and ±0.25% in pressure).
Entirely designed in stainless steel, PABT stands out for its robustness, able to withstand shocks while offering a high level of safety. superior protection against corrosive and conductive fluids (IP66 protection).
