Surface temperature measurement often poses challenges:
How do I measure temperature on an uneven surface? How to place a sensor in a very small gap? How can I get a measurement large enough to be consistent?...

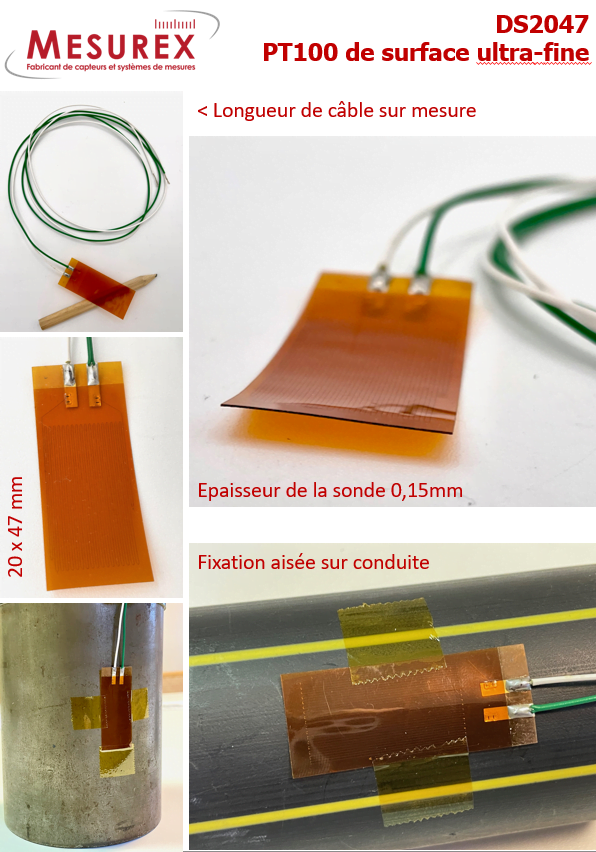

To overcome these problems, Mesurex has developed a ultra-thin (0.15mm), flexible PT100-type platinum probe, which has the advantage of collecting the average temperature over the entire surface of the probe (20 x 47 mm).
The DS2047 measures temperatures from -70°C to 200°C and guarantees ultra-fast response times of the order of 0.1 seconds.
In addition, the DS2047 is extremely easy to set upThis can be done with double-sided adhesive on the underside of the wafer, with simple adhesive tape on the probe, or by slipping it into a gap or between two layers.
It is available in 2, 3 or 4-wire versions, with unshielded gauge 28, and a cable length that can be modified to suit your specifications.
Tell us about your temperature measurement challenges. me*****@*****ex.fr
