Sheathed and sheathed temperature sensors

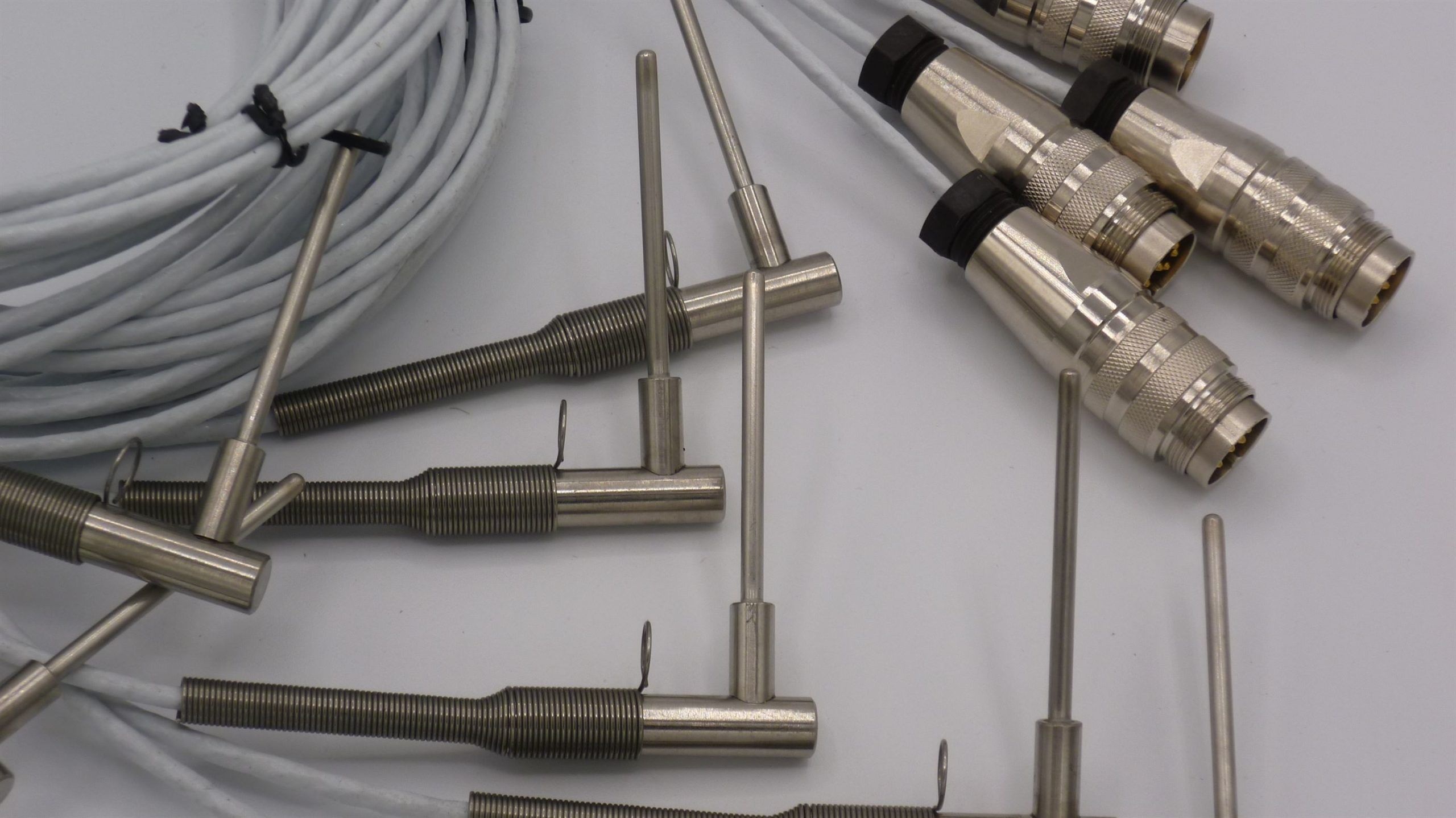

PT100 monobloc - CCL


This model of one-piece platinum probe, with its excellent accuracy, is the ideal model for measuring temperature in solid, liquid or gaseous media.

The CCL probe is directly terminated by a Lemo connector (standard), Amphénol or Phoenix (on request) and also available in angled version.

We can also offer a swaged tube end to increase responsiveness.

The diameter and length of the product are defined according to your needs.

Calibration in our metrology laboratory up to 1200°C

Sensitive element PT100 or PT1000 Class A, Class B or 1/3DIN according to NF EN 60781.
Measurement range : -50° ... +400 °C
Cylindrical connector Lemo (standard), Amphenol or M12...
Connector length (Lemo): 40 mm (others on request)
Sheath length on request
3-wire circuit standard (others on request)
Counter grip : provided
Extension cable 2 m standard (others on request), cable type on request (depending on application)
