Rigid tube temperature sensor - SD

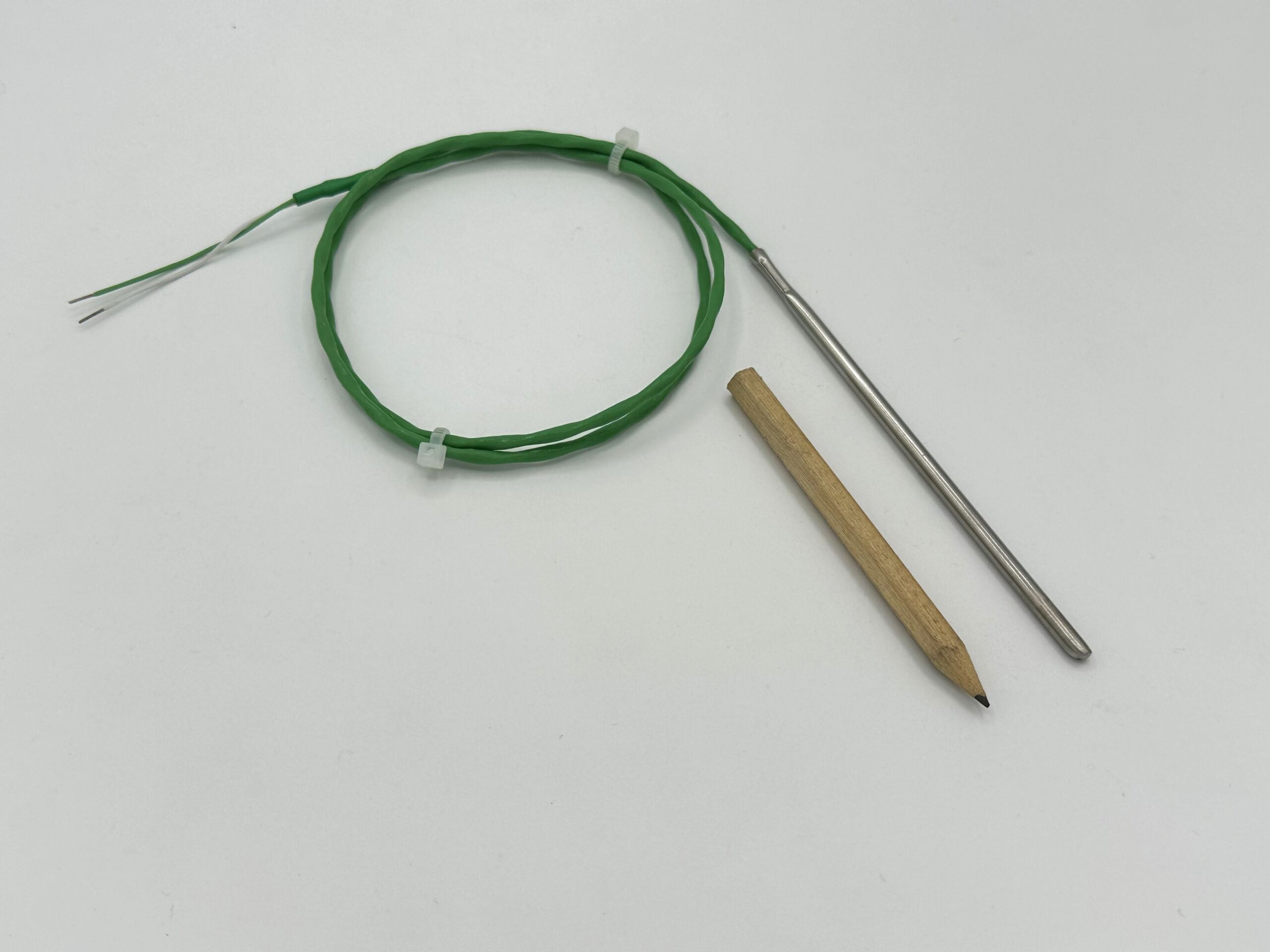

This temperature sensor of the SD series consists of a sensitive element (PT100 / thermocouple) mounted in a rigid stainless steel tube.

This configuration allows temperature measurements to be taken in a variety of environments, including liquid environments (waterproof version with one-piece bonding) or wet (crimped version). It's the ideal product to meet the requirements of a autoclave. As an option, we can fit a double-wall Teflon coating to protect the stainless steel when it is attacked by a chemical agent. highly corrosive liquid.

The choice of tube diameter depends on the size of the sensing element and the size of the connecting cable.

Calibration in our metrology laboratory up to 1200°C

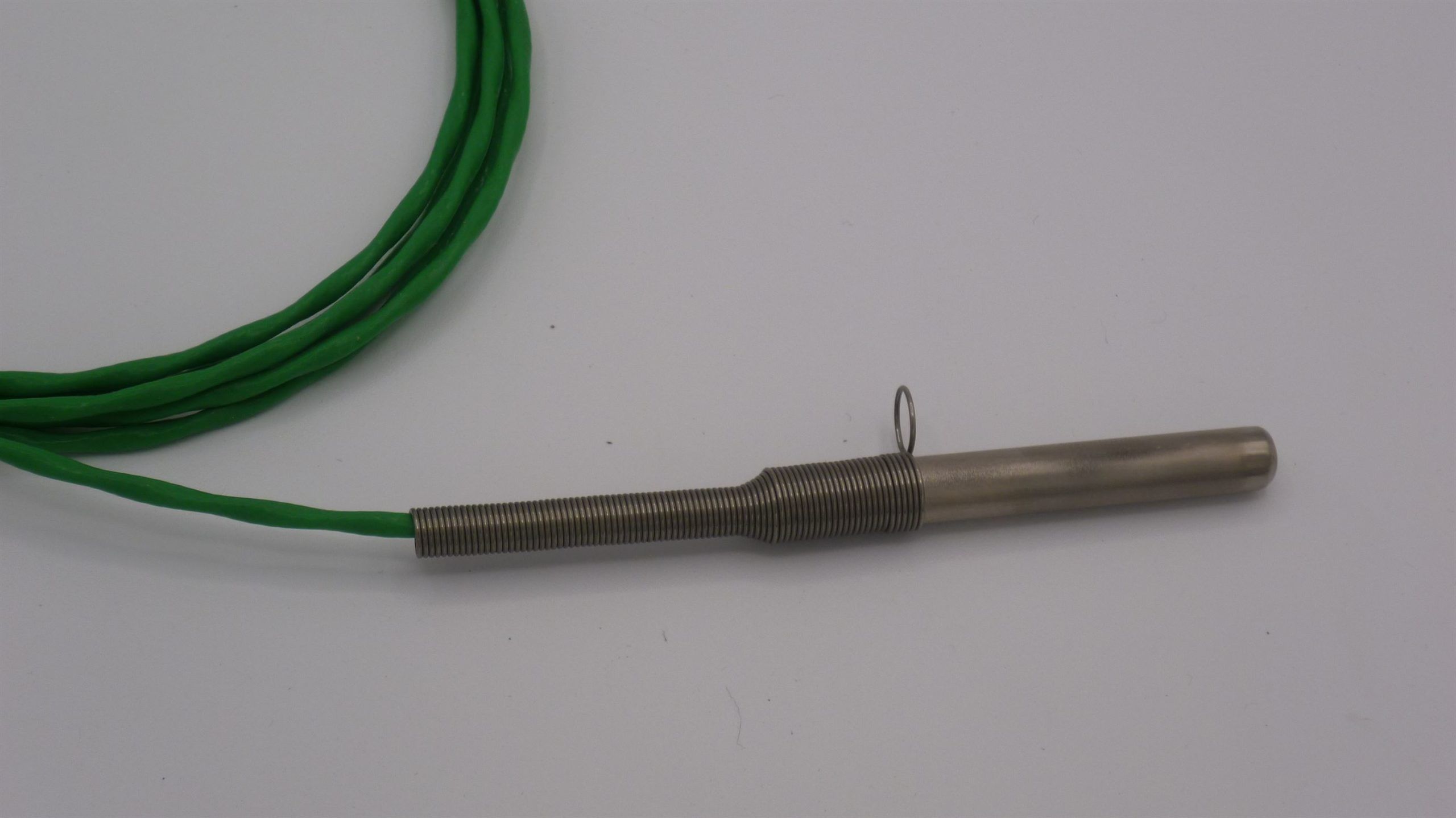

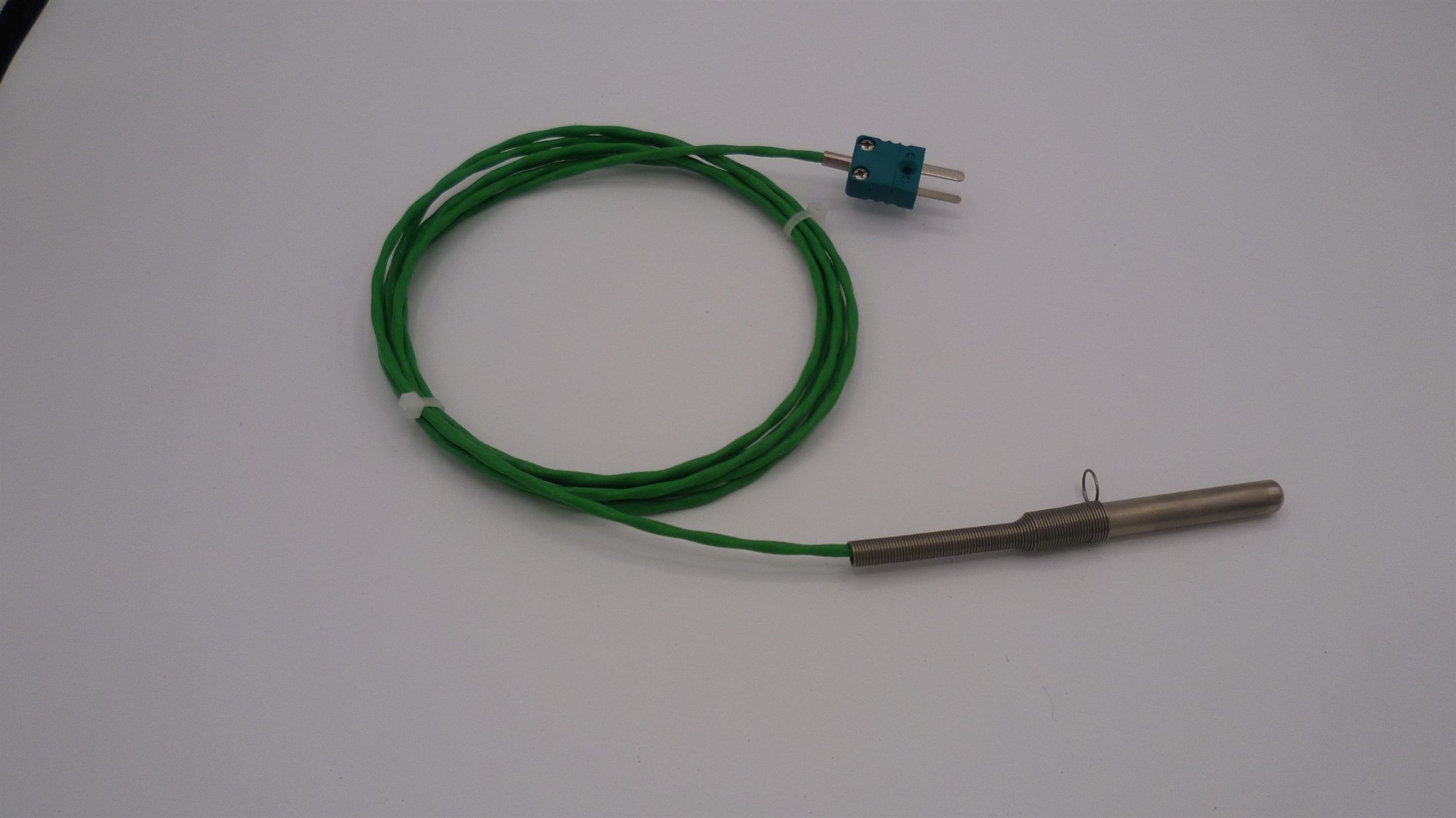

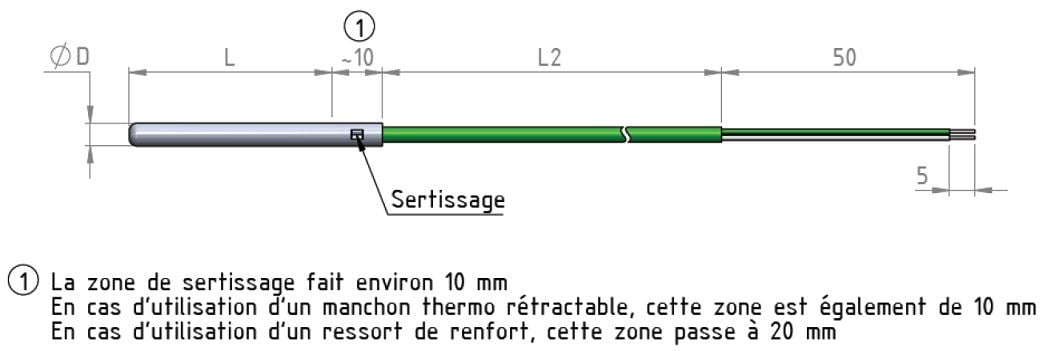

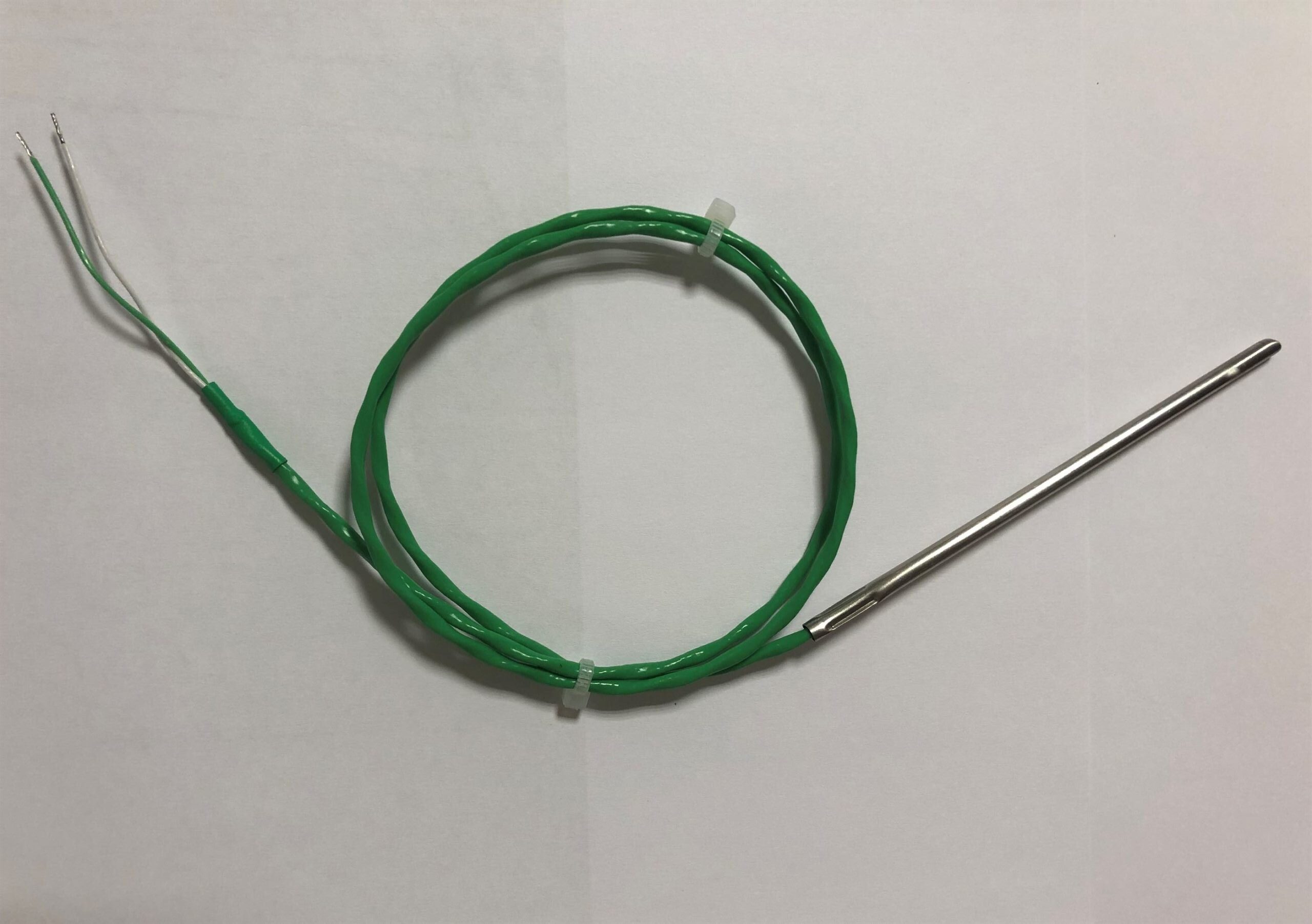

thermocouple rigid tube

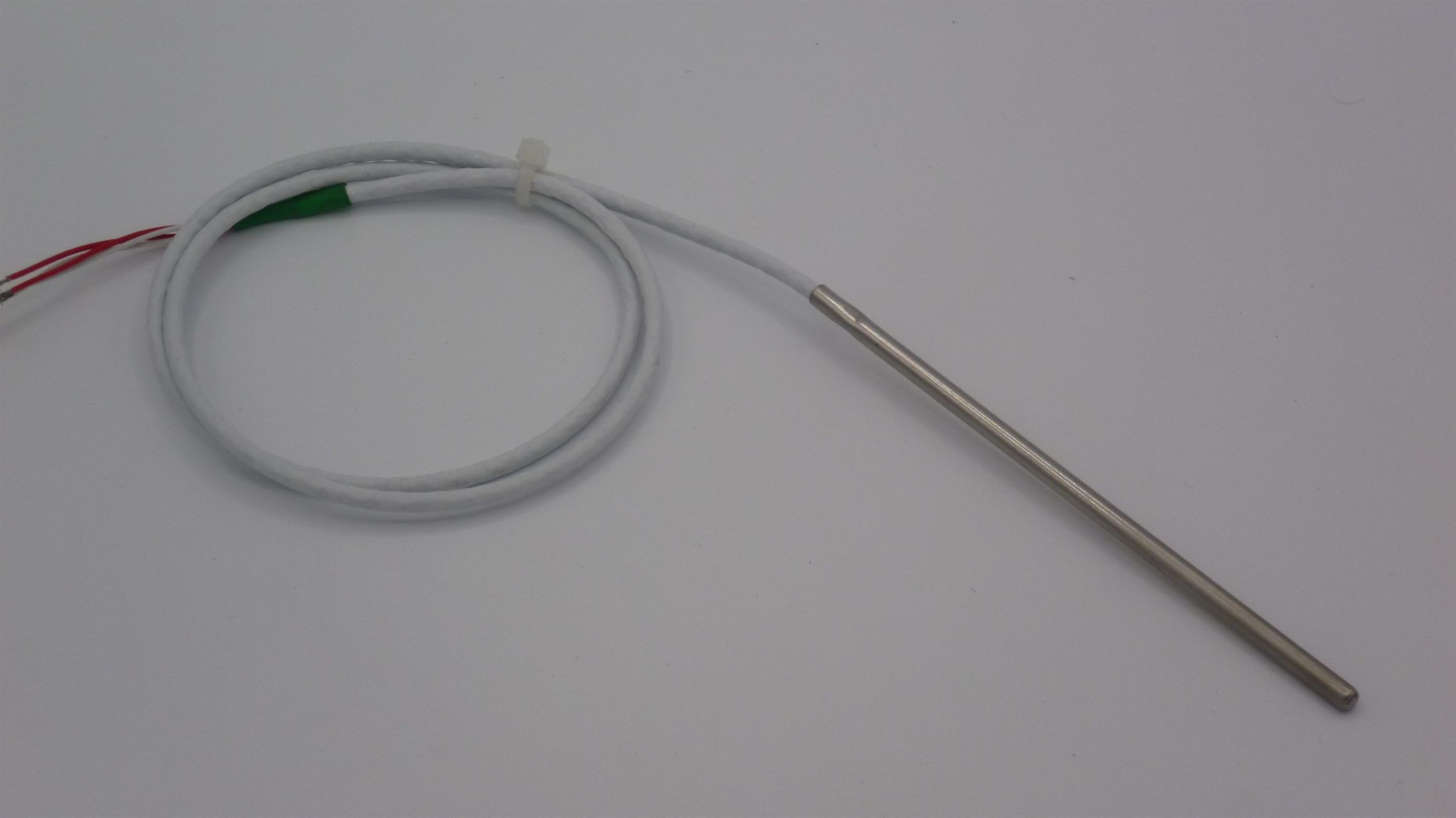

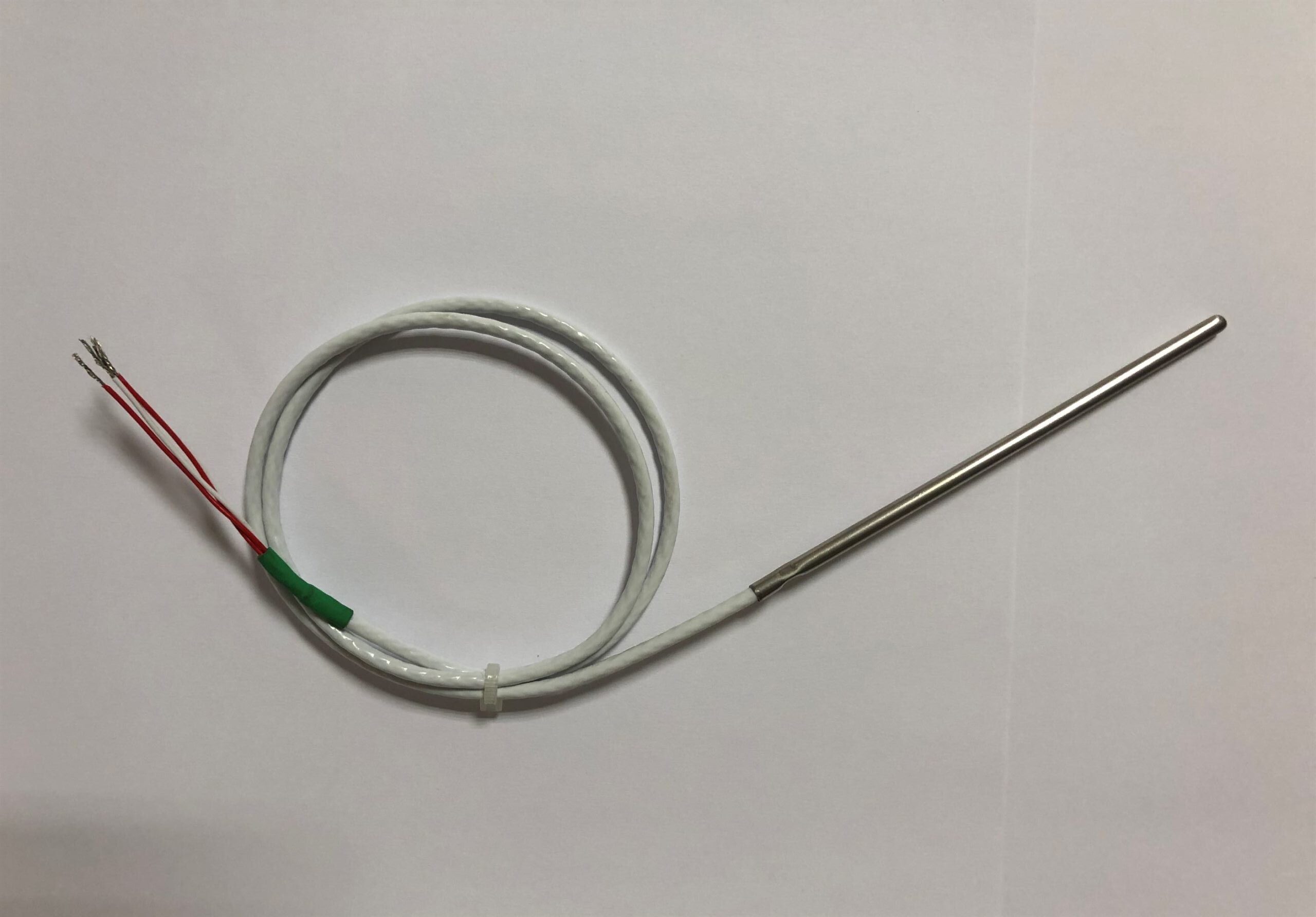

PT100 rigid tube

  • Sensitive element PT100 / PT1000 or thermocouple type K, J, N, E, T or S (with 10kΩ CTN thermistors accurate to ±0.3% available on request)
  • Measurement range : -60°C ... 250°C (depending on the type of extension cable)
  • Sheathing type 304 stainless steel as standard (316L or other on request)
  • Type of extension Standard shielded Teflon 250°C (unshielded Teflon, PVC, silicone, glass silk on request)
  • Precision Class A (PT100) / Class 1 (TC), in accordance with NF EN 60584-1 as standard (other on request)
  • Diameter (D): 3 / 6 mm as standard (others on request - see datasheet)
  • Useful tube length (L): 50 / 100 / 300 / 500 mm as standard (others on request - 500 mm maximum)
  • Extension length 2 m. standard (others on request)
  • Connections : bare wires as standard (specific connector on request)
  • PT100 mounting 3-wire as standard (2 or 4-wire on request, depending on feasibility)
